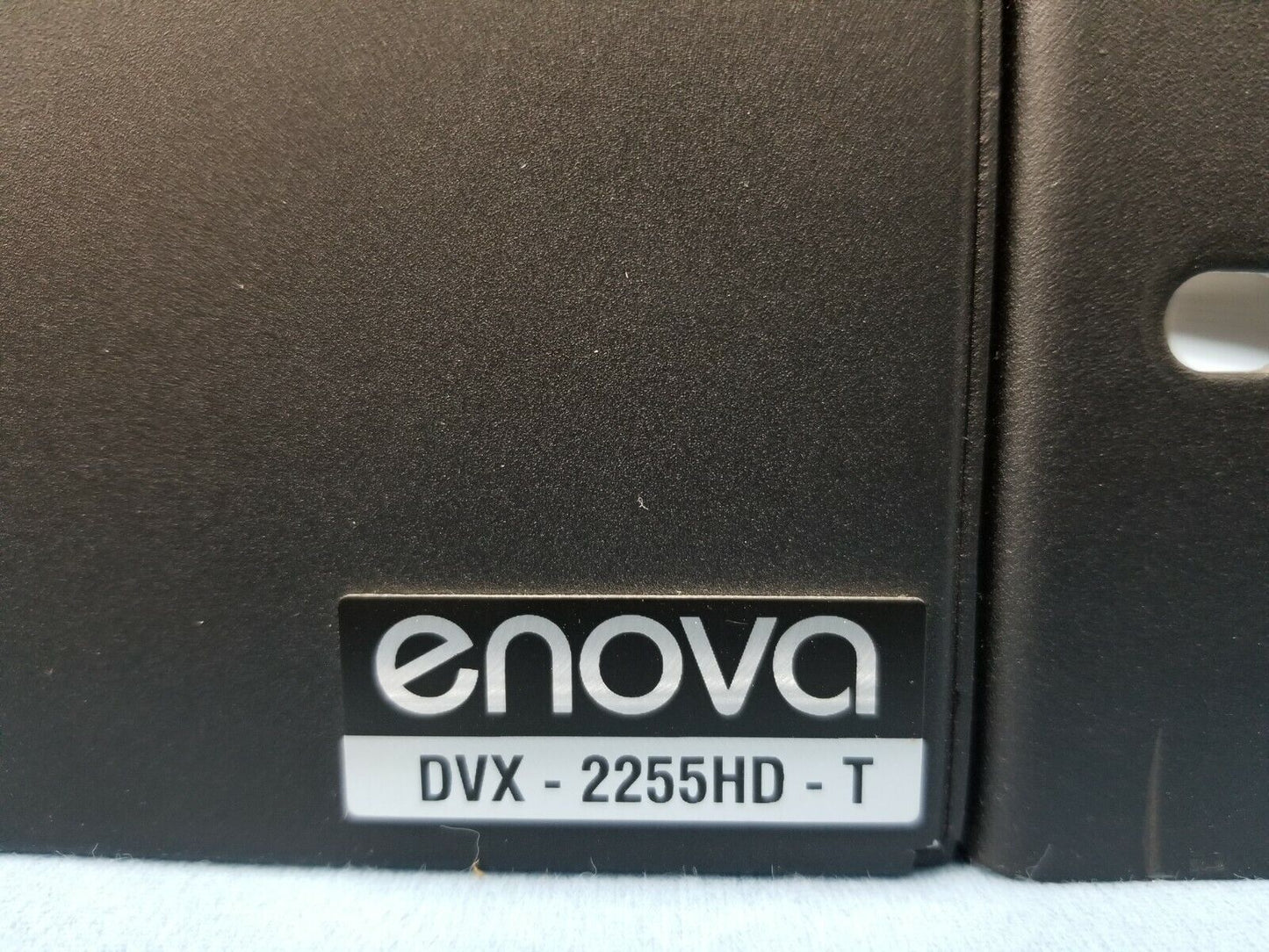

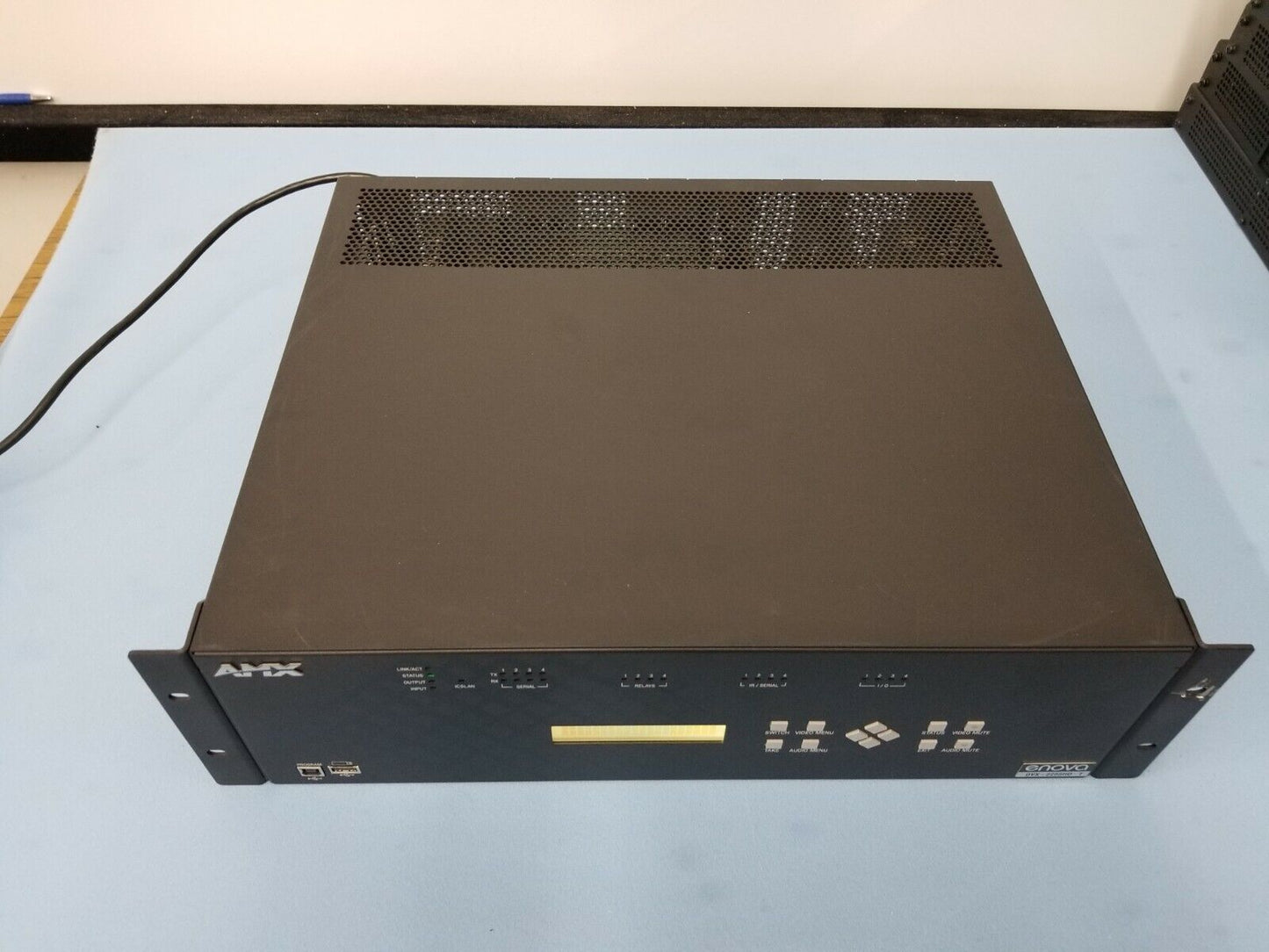

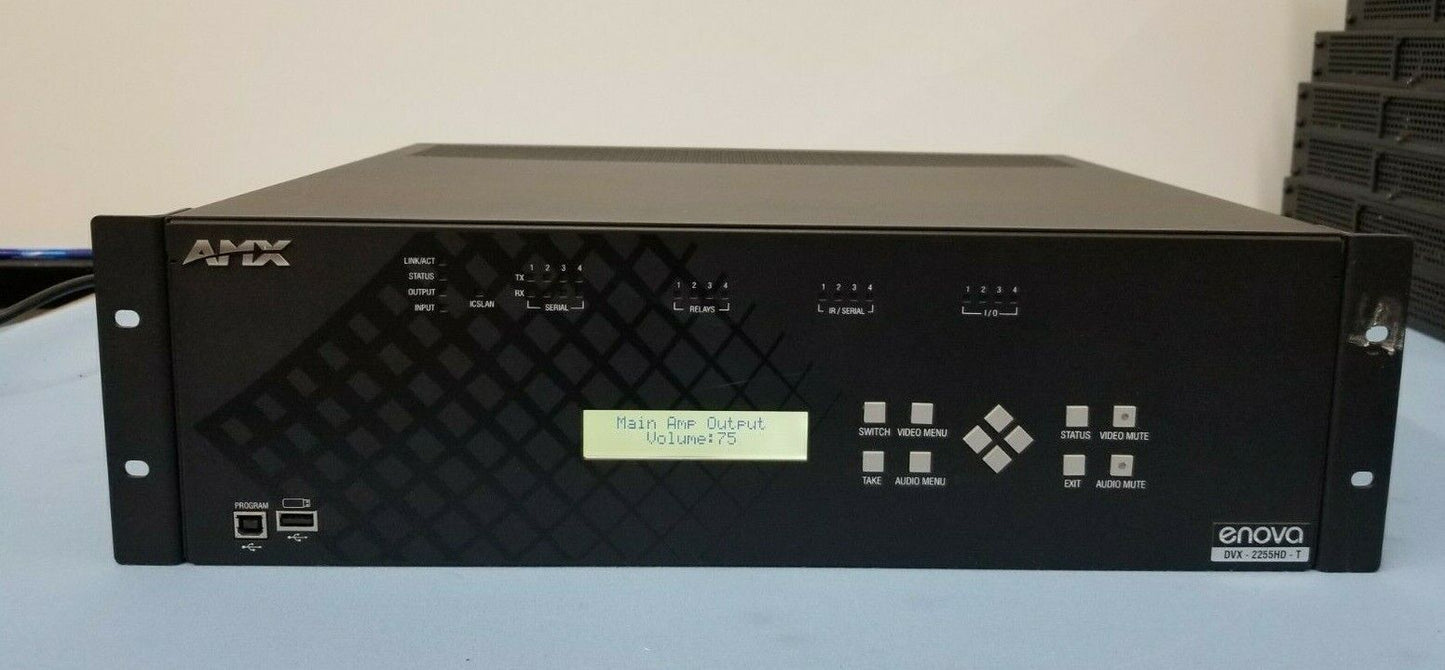

AMX Enova DVX-2255HD-T 6x3 All-In-One Presentation Switcher

AMX Enova DVX-2255HD-T 6x3 All-In-One Presentation Switcher

Regular price $129.99
Regular price Sale price $129.99
Sale Sold out

Type: DVX


Brand: AMX

This listing is for an AMX DVX-2255HD-T Presentation Switcher.     We have several available.  They were removed during a recent upgrade and are in great operational and physical condition.

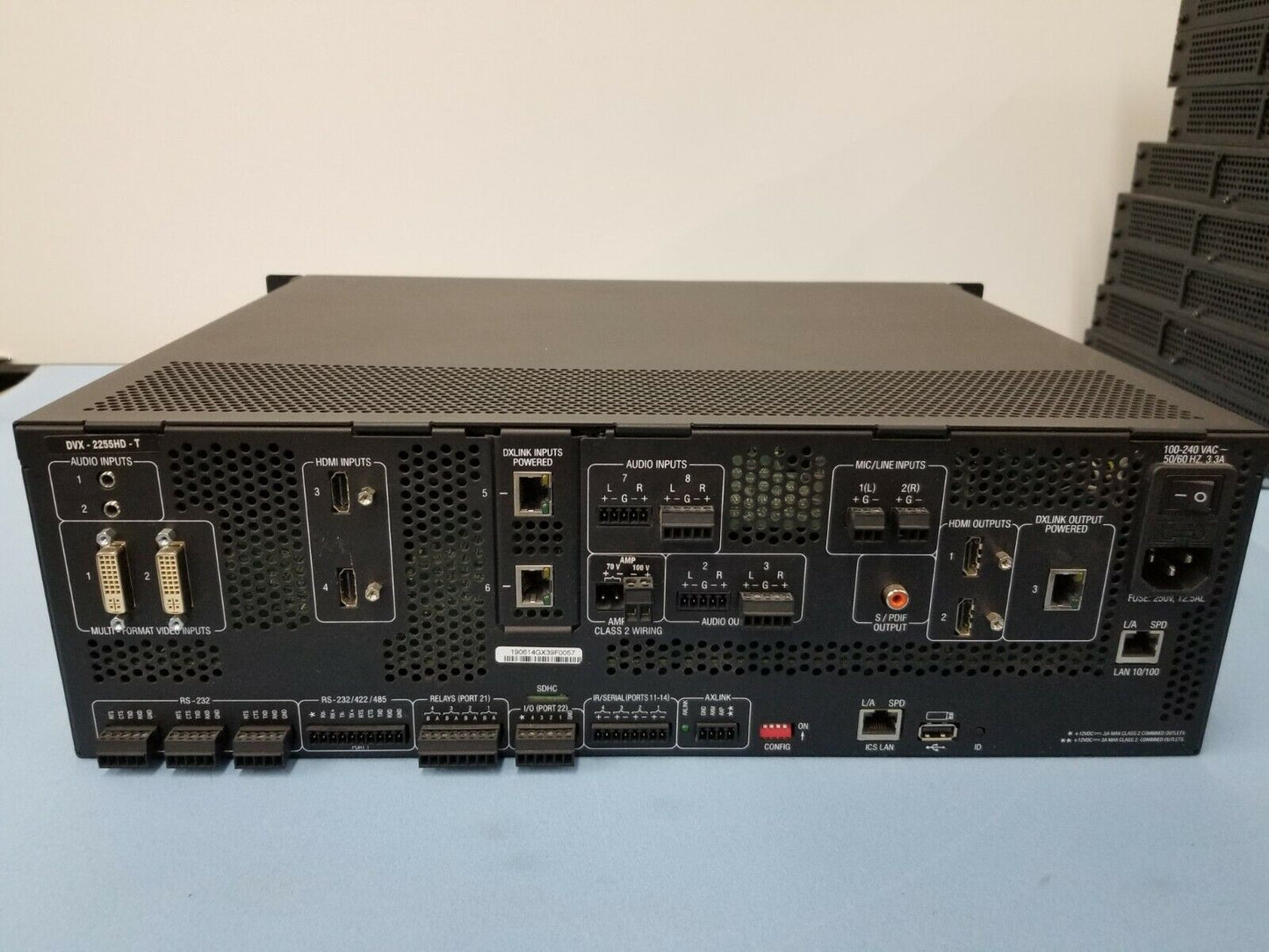

The switcher supports multiple formats including both digital and analog for legacy devices.  The inputs includes: 2 DVI-I, 2 HDMI, 2 DXLink, and 4 audio inputs.  The outputs include 2 HDMI, 1 DXLink, and 2 audio. The video outputs are always scaled to the optimal resolution needed, just one more thing that you don't have to worry about.

The microphone inputs provide independent 3 band parametric EQ, auto ducking, gating,  and limiting for a fully adjustable high quality sound.  The unit can also act as a matrix switcher and offer 6x3 matrix switching and 8x3 audio matrix switching.  The 1 twisted pair output can send your video, power, and RS-232 up to 328' for those difficult or long runs where cat5e/6 cable is easier to install.  Control the unit via RS-232 or the push buttons on the front, there is also EDID management to ensure the best resolutions are displaying on your monitors.


  • Resolution: Up to 1920 x 1200 at 60 Hz
  • 6x3 video matrix switcher
  • 8x3 audio matrix switcher
  • Microphone inputs: 2
  • 3D pass through
  • HDCP compliant
  • ICSLan connection
  • EDID management
  • 1 Ax-Link port
  • 3 RS-232 port

Shipping is FREE in the continental US.

We pack our gear well and ship quickly.
