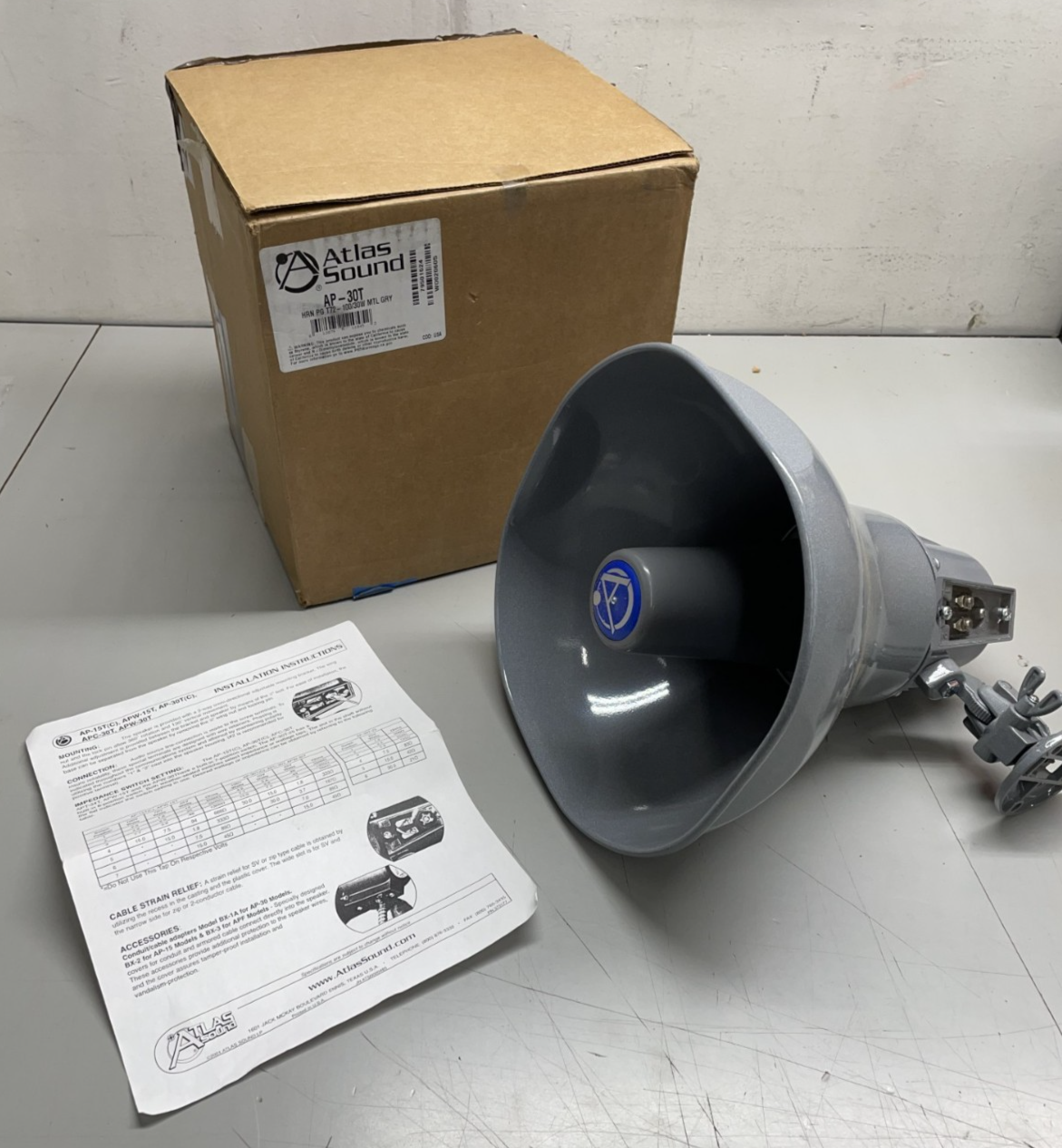

Atlas Sound AP-30T Omni-Purpose 30-Watt Horn Loudspeaker/Speaker w/ Transformer

The transformer-equipped Model AP-30T is a double re-entrant loudspeaker which deliver 30 Watts of continuous power handling, superior intelligibility and unparalleled audio conversion-efficiency.  The AP-30 Series operates within a nominal frequency

range of 300-12,000 Hz and offers a sensitivity of 126dB at rated power to provide clear voice and signal communication.

The model AP-30T features an integral transformer to meet a variety of distributed system needs. The AP-30T is equipped with

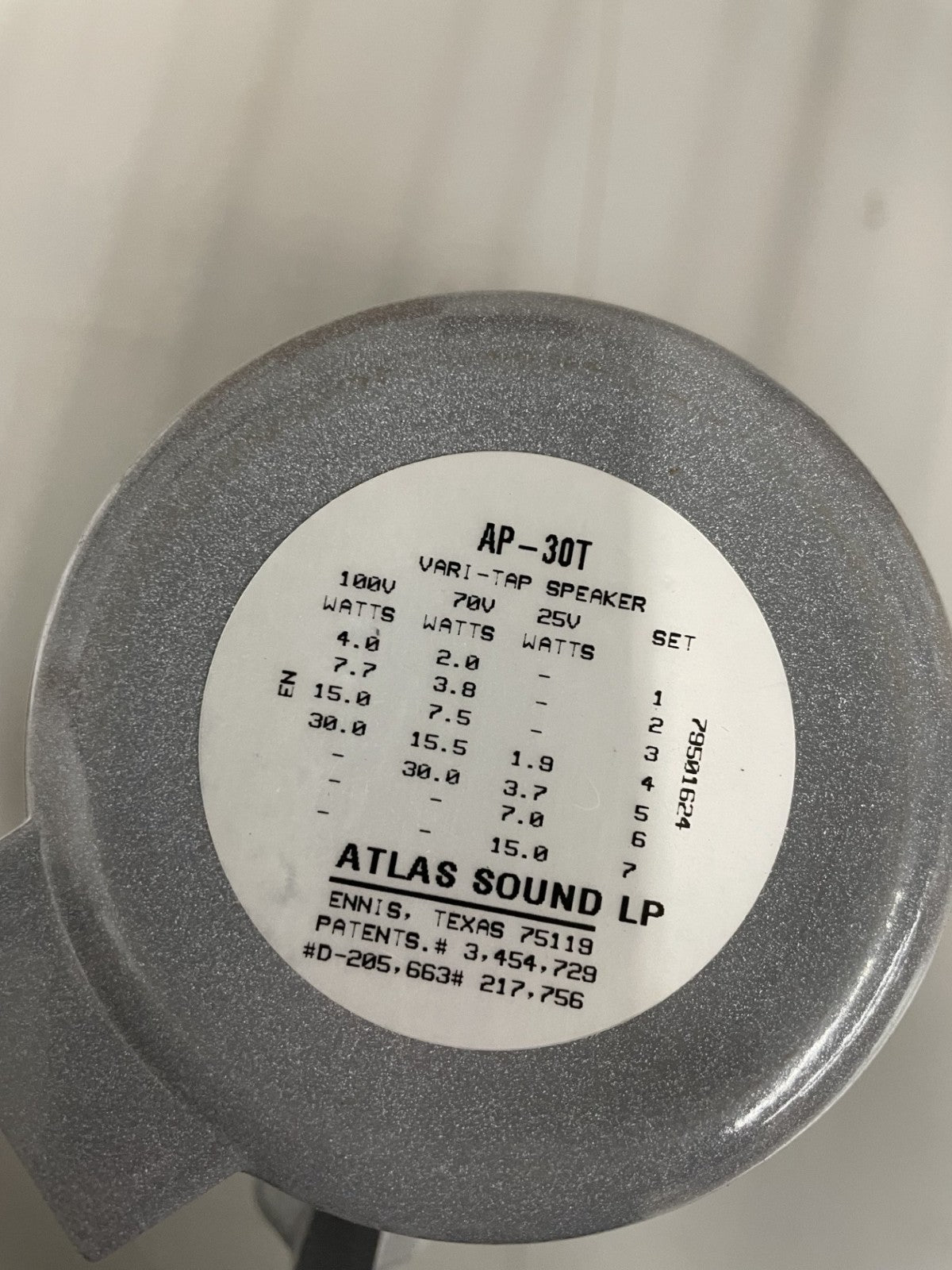

a versatile, 3-way, 25, 70.7, 100V line transformer. Transformers are adjustable using Atlas Sound’s exclusive Vari-Tap Connect Center which features a 7-position, watts/impedance selection switch. The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief.

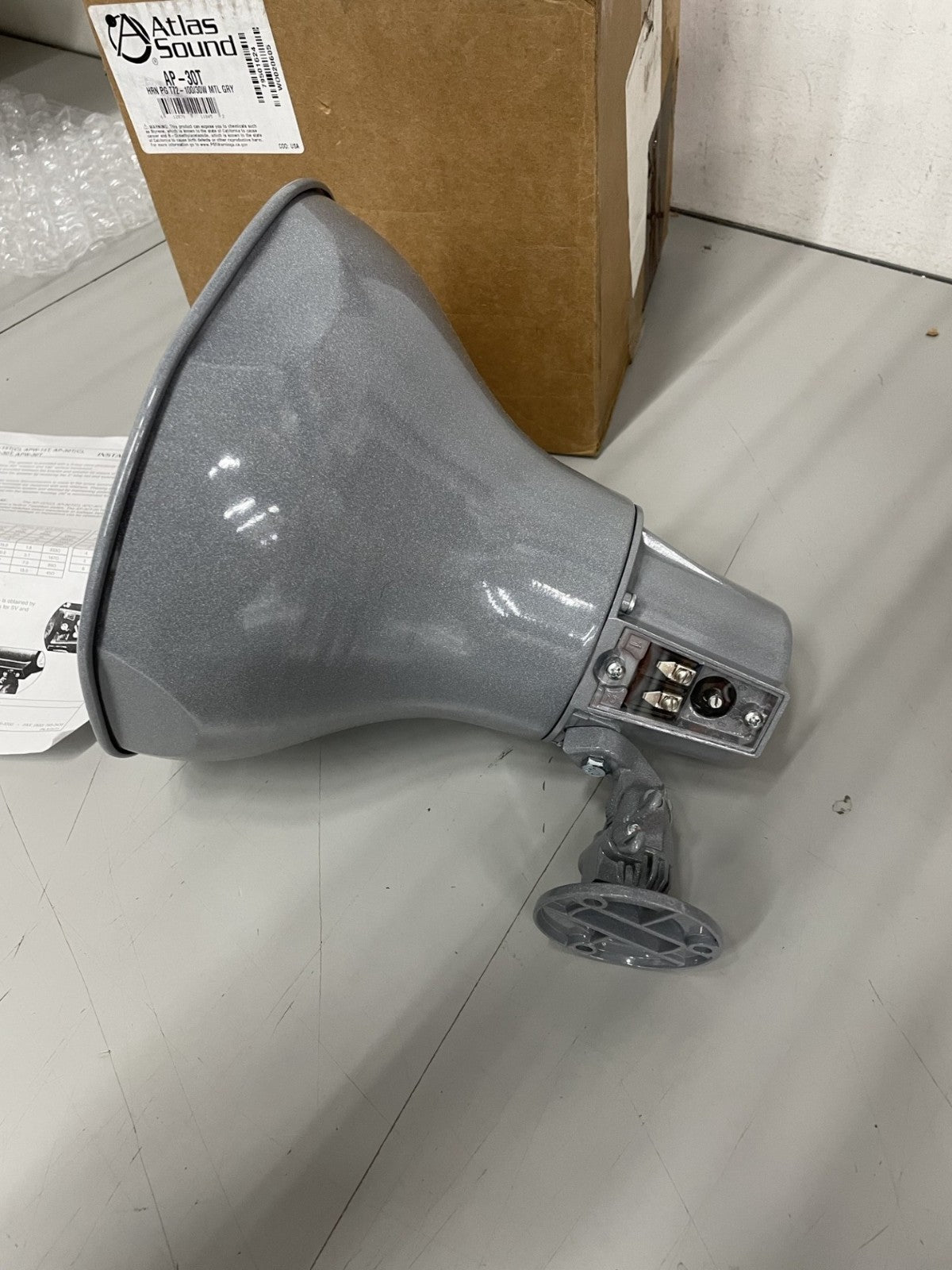

The trademarked square bell design signifies AtlasIED quality and reliability. The Omni-Purpose mounting bracket (included on all models) allows precise positioning in the vertical and horizontal planes with a single adjustment and provides for installation of the loudspeaker on conventional surfaces or by strap-mounting to I-beams or pillars.  AP Series loudspeakers are U.S. made

to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
