Atlas Sound / AtlasIED Multi-Tap AP-15TC 15-Watt Omni-Purpose Horn Speaker

Atlas Sound / AtlasIED Multi-Tap AP-15TC 15-Watt Omni-Purpose Horn Speaker

Regular price $79.00
Regular price Sale price $79.00
Sale Sold out

Brand: Atlas

Type: Speaker Horn

Color: Beige

Model: AP-15TC

Connectivity: Wired

MPN: AP-15TC

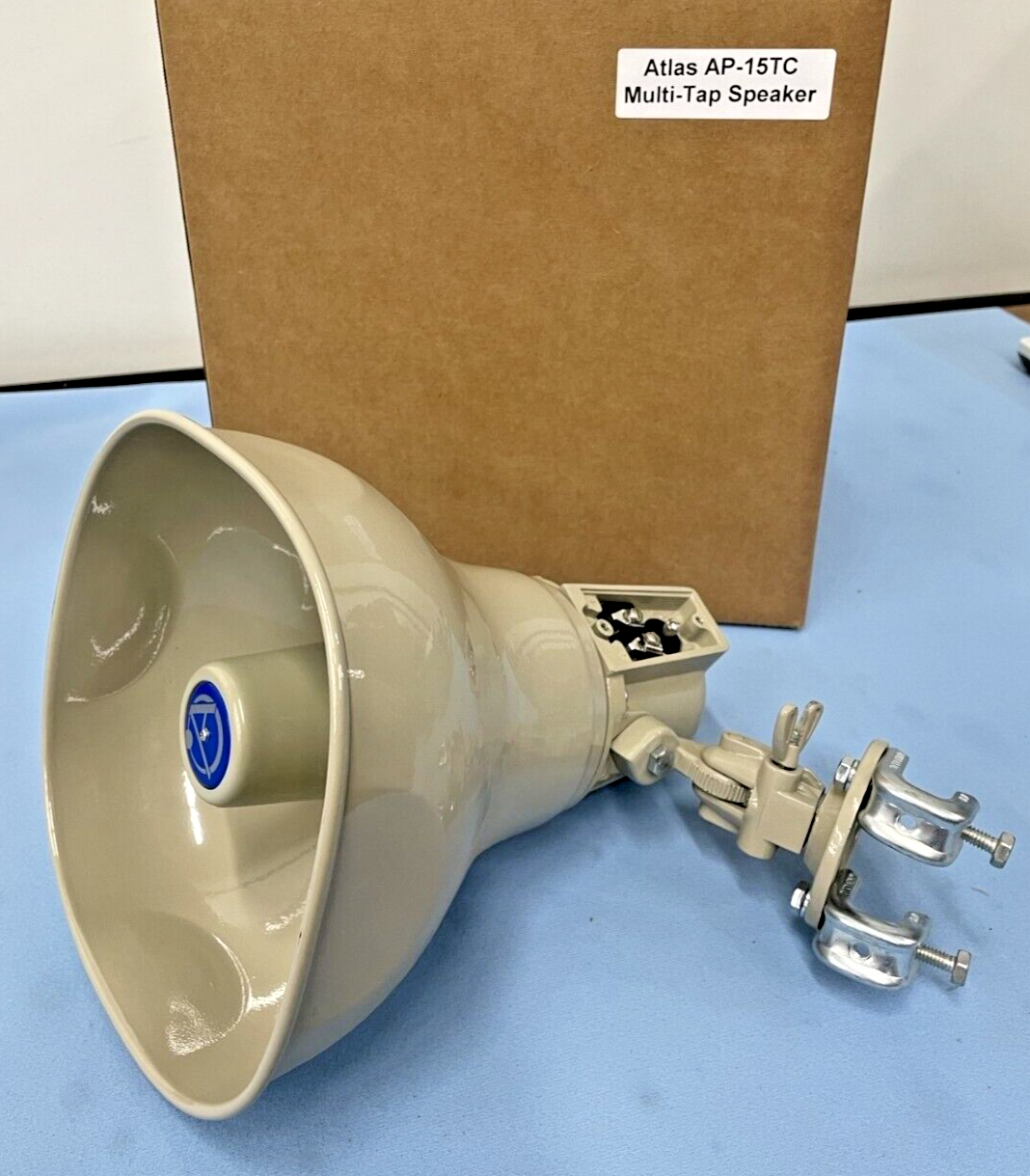

Atlas Sound / AtlasIED Omni-Purpose 15-Watt Horn Loudspeaker

You are bidding on an Atlas Sound 15-watt horn speaker.  This loudspeaker was briefly installed in a corporate facility where it was determined that background audio (music) would be required.  This speaker has been professionally handled - and is in excellent physical and functional condition!

Description / Overview

The transformer-equipped Model AP-15TC is a double re-entrant loudspeaker which delivers 15 Watts of continuous power handling, superior intelligibility and unparalleled efficiency. The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

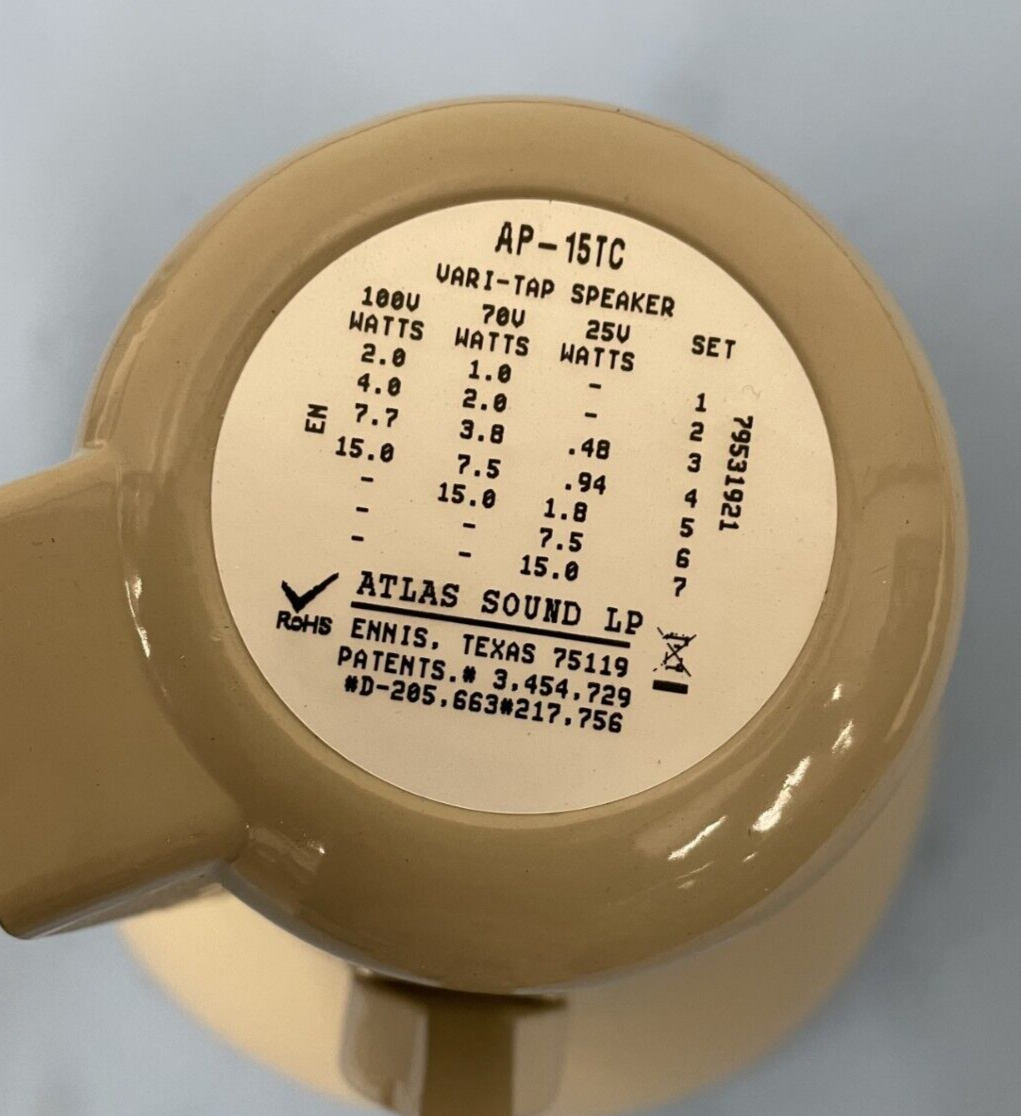

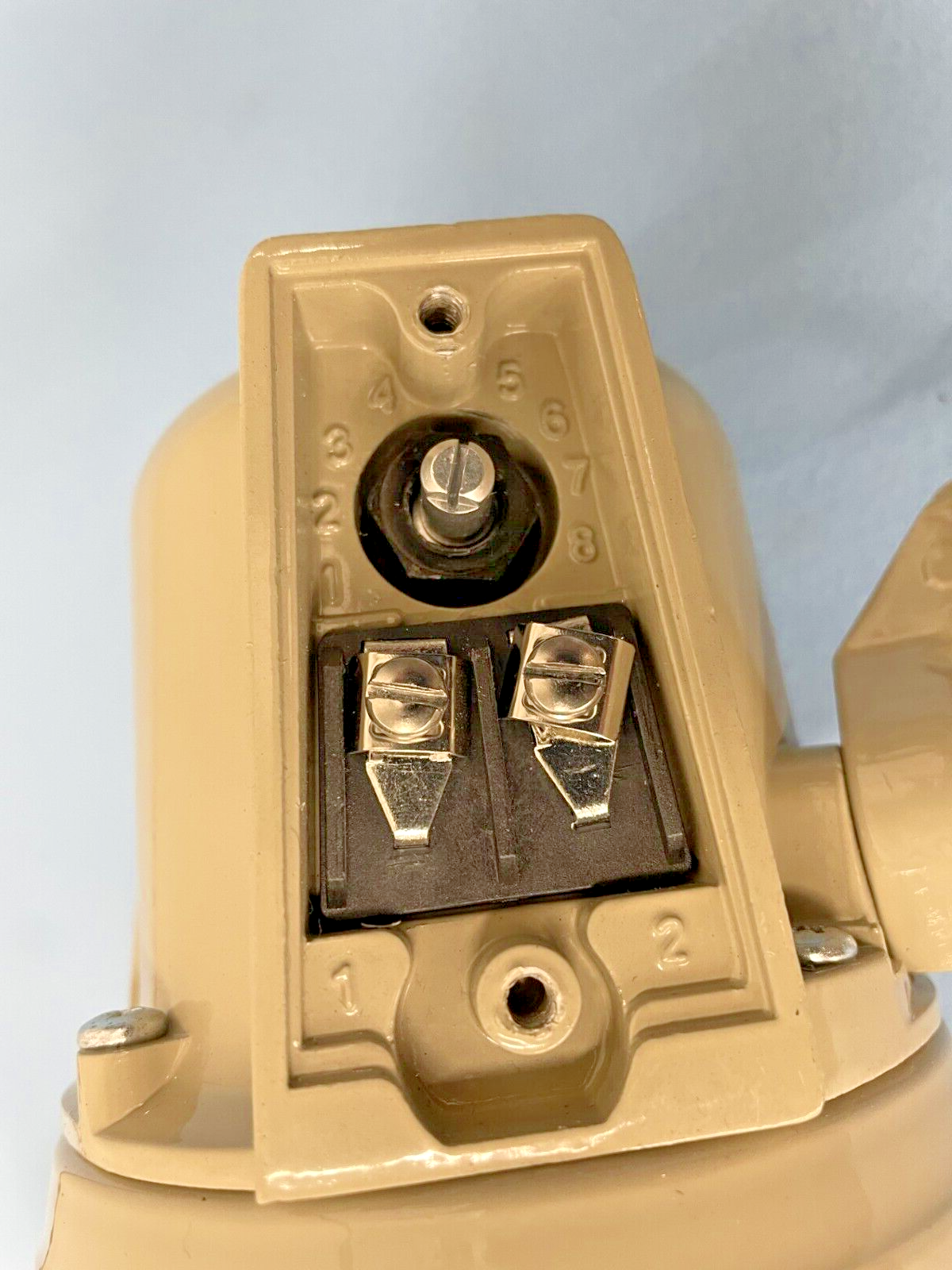

The transformer-equipped Model AP-15T includes a versatile, 3-way, 25, 70.7, 100V line transformer to meet a variety of distributed system needs. The transformer is adjustable using Atlas Sound’s exclusive Vari-Tap Connect Center which features a 7-position, watts/impedance selection switch. The labor-saving Vari-Tap switch is screwdriver adjustable and includes a protective cover with built-in cable strain relief.

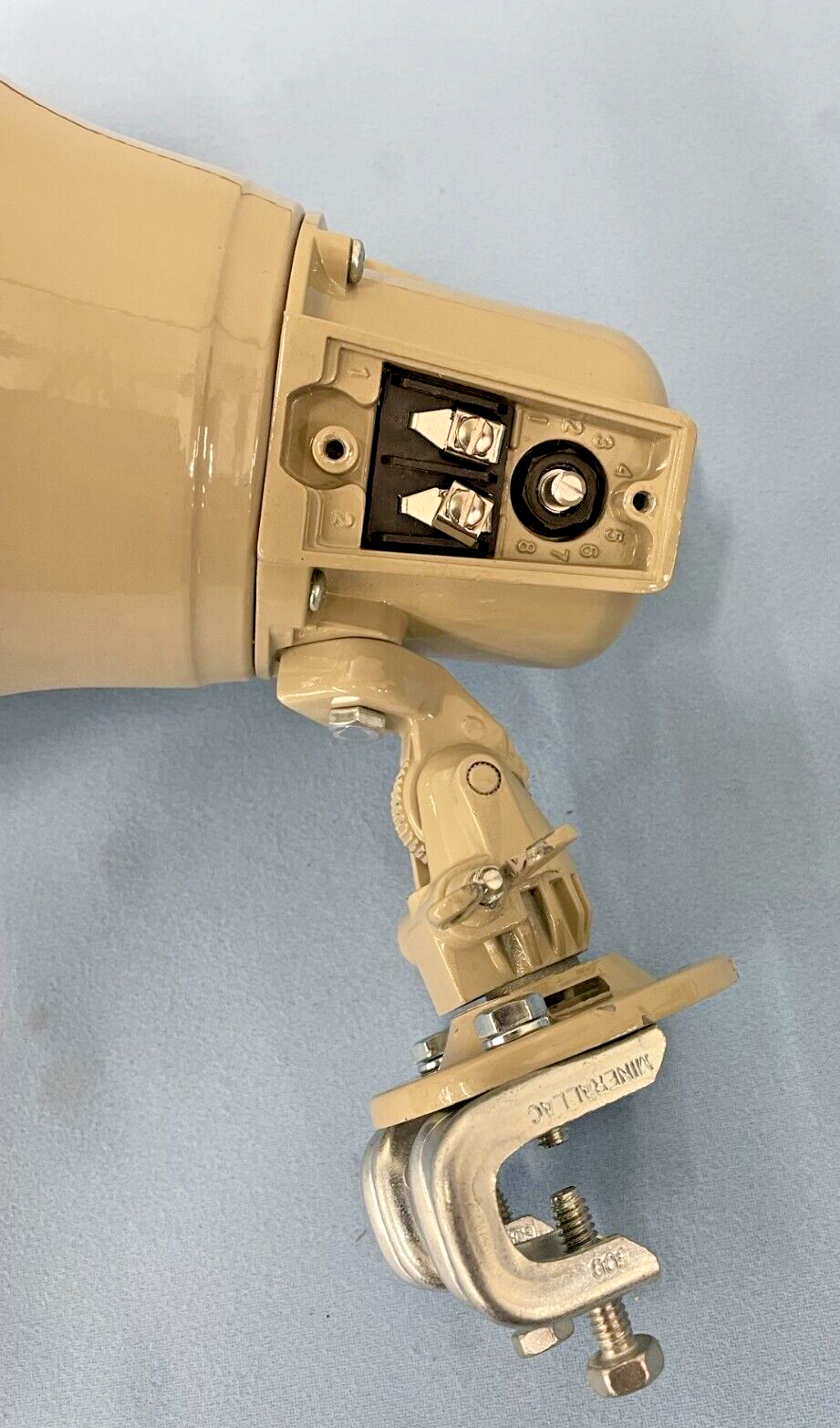

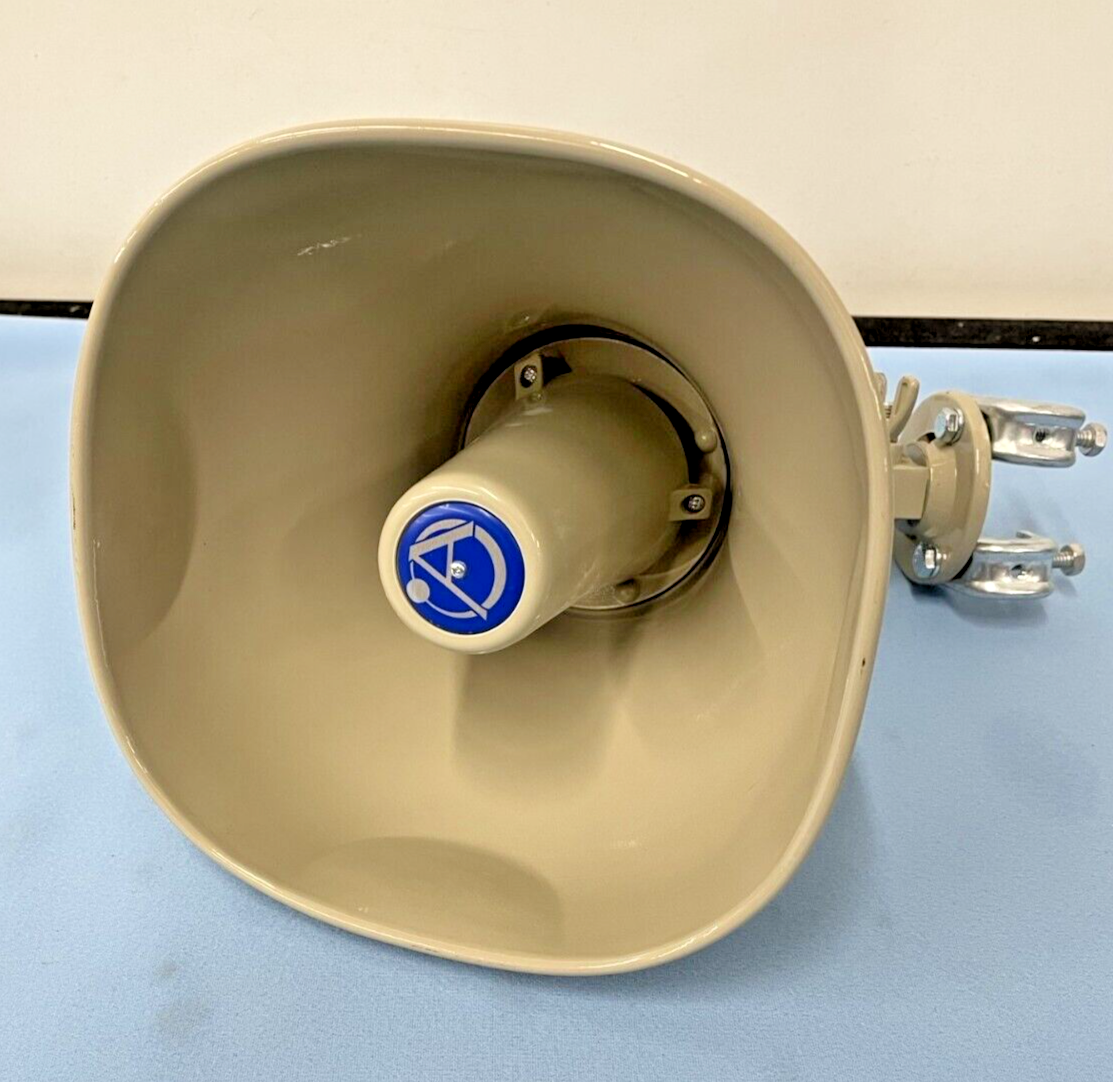

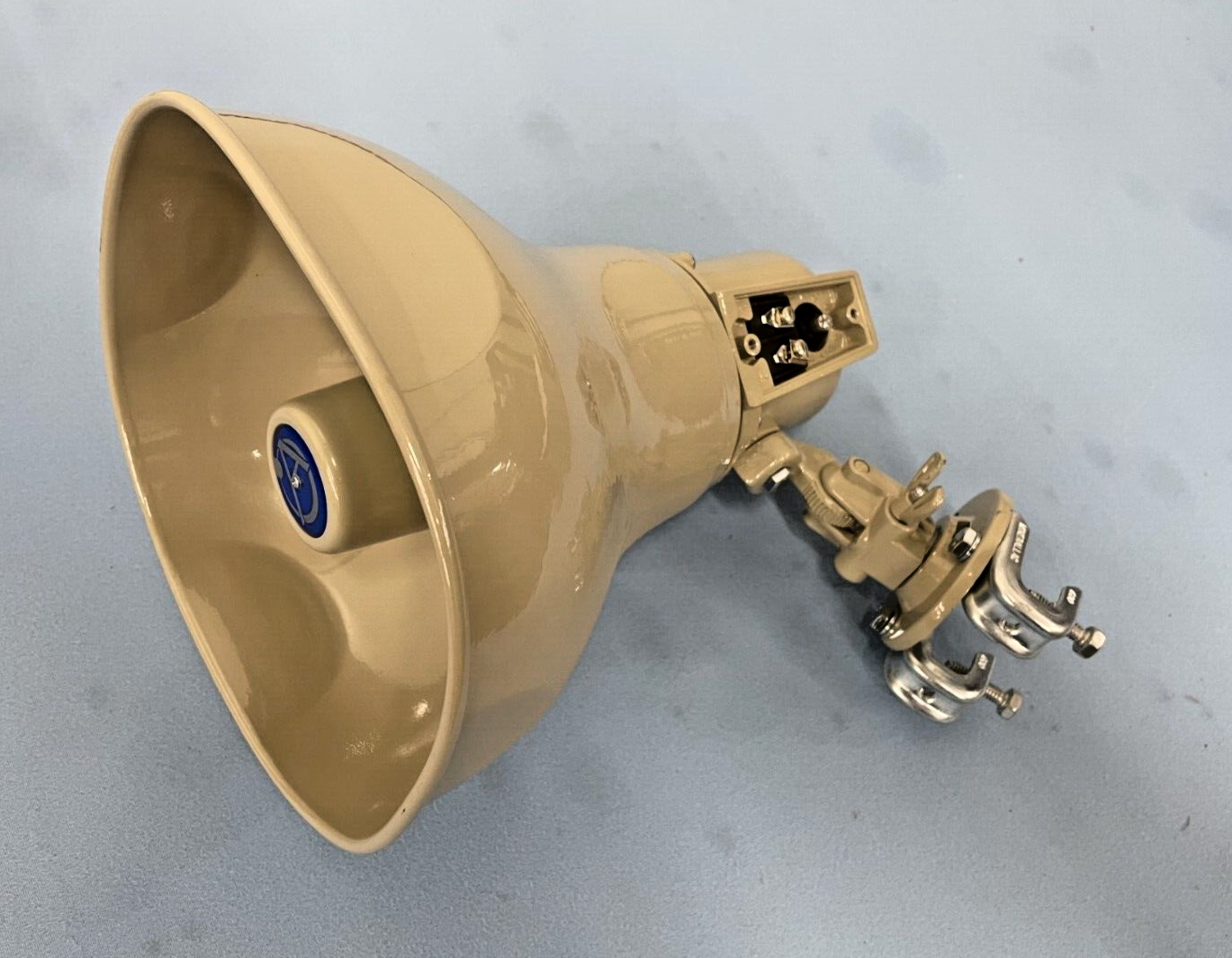

The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap-mounting on I-beams or pillars. AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished beige epoxy.

Features
  • Superior Intelligibility for Voice & Tone Signaling
  • High Efficiency Driver with Proven Performance Reliability
  • Transformer Equipped for Versatile 25, 70.7 or 100V Line Applications
  • Omni-Purpose Mounting Bracket for Precise Positioning
  • Environment Resistant for Indoor and Outdoor Use
  • US Trademark Design is World Recognized for Quality and Dependability

Applications

The AP-15TC environment-resistant loudspeaker is the world standard for high-intelligibility voice and signal transmission in medium power indoor and outdoor public address, intercom, security and industrial-signal-system applications.  Cost effective, 15-watt units incorporate high-efficiency compression drivers to project sound over long distances or wide areas with fewer loudspeakers. The AP-15 Series is recognized throughout the world as “the performance standard” for commercial sound, intercom and protective-signaling systems. Units are commonly installed in commercial buildings, distribution centers, factories, schools, public access areas, civic centers and recreational facilities.
