Bose

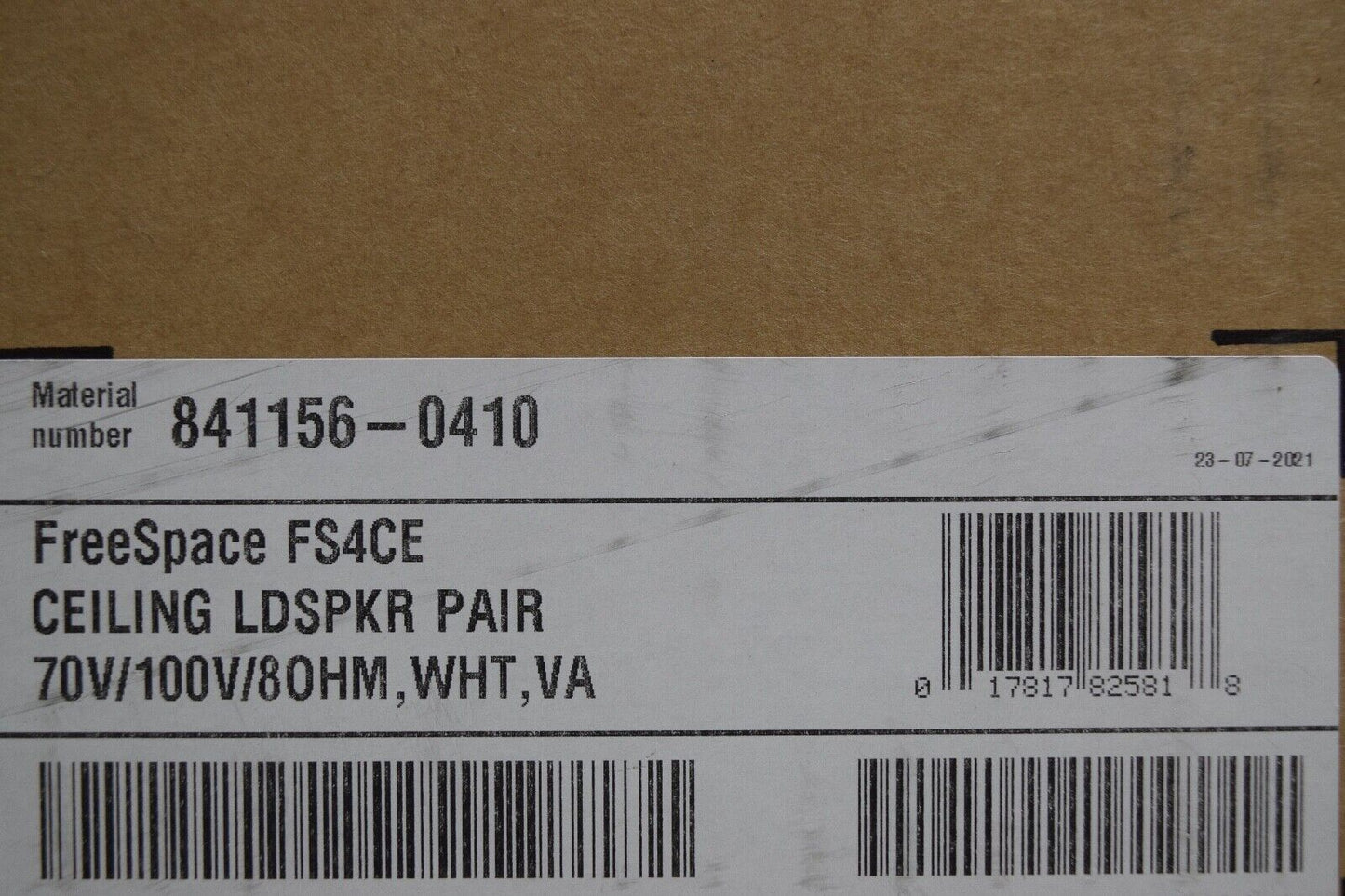

Bose FreeSpace FS FS4CE Ceiling Speakers ( 1 Pair) WHITE 841156-0410
Bose FreeSpace FS FS4CE Ceiling Speakers ( 1 Pair) WHITE 841156-0410
Regular price
$299.00
Regular price
Sale price
$299.00
Unit price
/
per
Couldn't load pickup availability
Compatible Brand: For Bose
Driver Size: NA
System Configuration: NA
Shape: Sphere
Color: White
MPN: 841156-0410
Smart Home Compatibility: NA
Brand: Bose
Type: Ceiling Speaker
Audio Inputs: NA
Unit Type: Unit
Model: Bose FreeSpace FS FS4CE
Connectivity: Wired
Features: NA
RMS Power: 50 W
Impedance: 8 Ohms
Unit Quantity: NA
System installers looking for a high-quality in-ceiling speaker that's easy to install will be pleased with the white Bose Professional FreeSpace FS4CE, a pair of flush-mount passive loudspeaker with a single 4.5" full-range driver and a 115° conical coverage pattern for intelligible foreground/background music and speech reproduction in retail stores, restaurants, resorts, and more. The FS4CE handles up to 200W peak power and is capable of producing a maximum peak SPL of 111 dB. The integrated multi-tap transformer can be configured for an array of 70/100V settings via a convenient thumbwheel beneath the grille. The FS4CE is voiced to ensure consistent tonality throughout the FreeSpace FS family, so it can be installed alongside other surface-mount and in-ceiling loudspeakers without compromising the system's sonic signature. The FS4CE includes cutout templates, mounting hardware, and two weather-resistant input covers.Speaker
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | Full-Range |
| Power Handling | 50 W RMS 200 W Peak |
| Constant Voltage / Transformer Taps | 70 V: 2.5 / 5 / 10 / 20 / 40 W or 8 Ohms Bypass 100 V: 5 / 10 / 20 / 40 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Nominal, Transformer Bypassed) |
| Enclosure Type | Bass-Reflex |
| Shielded | No |
Drivers
| Full-Range Driver | 1 x 4.5" / 11.43 cm |
Performance
| Frequency Range | 70 Hz to 17 kHz -10 dB |
| Frequency Response | 80 Hz to 16 kHz ±3 dB |
| Maximum SPL | 105 dB SPL (Continuous) 111 dB SPL (Peak) |
| Sensitivity | 88 dB SPL |
| Coverage Angle | 115° (Conical) |
| Recommended High-Pass Filter | 70 Hz, 24 dB/Octave |
Connectivity
| I/O | 1 x Block 6-Pin Speaker Input |
| Maximum Wire Gauge | 14 AWG / 2.5 mm |
Environmental
| Water / Weather Resistance | Weather Resistant |
| Environmental Protection | Advertised as Weather Resistant *Manufacturer Testing: IP55 |
| IP Rating | IP55 |
| Operating Temperature | -13 to 158°F / -25 to 70°C |
Physical
| Color | White |
| Cutout Size | 9.8 x 9.8" / 24.9 x 24.9 cm |
| Mount Surface Thickness | Up to 1.5" / 3.8 cm |
| Construction Material | Metal Grille, Plastic, Steel |
| Dimensions | 10.7 x 6.8" / 27.2 x 17.3 cm |
| Weight | 7.6 lb / 3.4 kg |
Packaging Info
| Package Weight | 20.37 lb |
| Box Dimensions (LxWxH) MG ID |
28.5 x 17.2 x 10.6" 000129523 |
