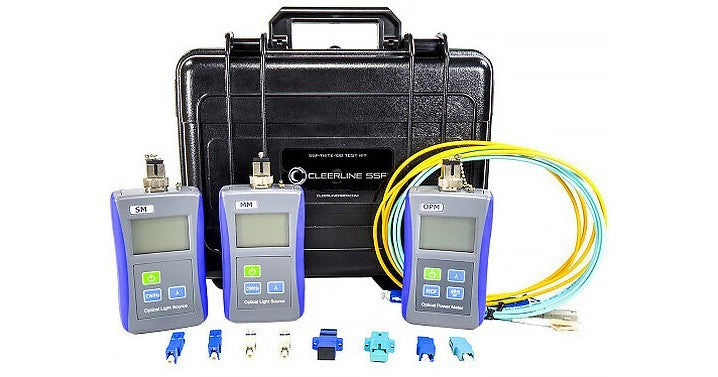

Cleerline SSF-TKITE-100 / CLR-TKITE-100 Basic Fiber Optic Testing Kit with Case

The SSF-TKITE-100 Basic Fiber Testing Kit provides basic optical link testing and qualification for single-mode and

multimode fibers.  The included Optical Power Meter and Optical Light Source units comprise a simple solution for

troubleshooting installed fiber.  This kit can be used to calculate general optical power loss in decibels (dB).  It is not

intended for network certification to TIA-568-C standards, but provides an easy-to-operate qualification solution.

The test kit tests on four wavelengths (850, 1300, 1310, and 1550 nm) with a range of 70 dB. The conveniently smallsized testing units include one single-mode light source, \one multimode light source, and a power meter. All testing units have a backlit LCD display and include an auto shut-off function for extended battery life.

Adapters for both SC and LC terminated cables are included in the kit, along with a full pack of reference cables. All materials are contained in a rugged case that keeps the items within neat, organized, and protected.

Choose the SSF-TKITE-100 as a simple solution for quick, general qualification and troubleshooting of installed fiber.

• Test kit includes carrying case

• Tests both multimode and single-mode fibers

• Wavelengths of 850, 1300, 1310, and 1550nm

• SC ports and LC type MM and SM adapters

• SC and LC reference cables included

• Auto shut-off function for extended battery life

• Up to 100hr battery run time (3 AAA batteries - not included)

• Easy reference power setup

• Convenient LCD display

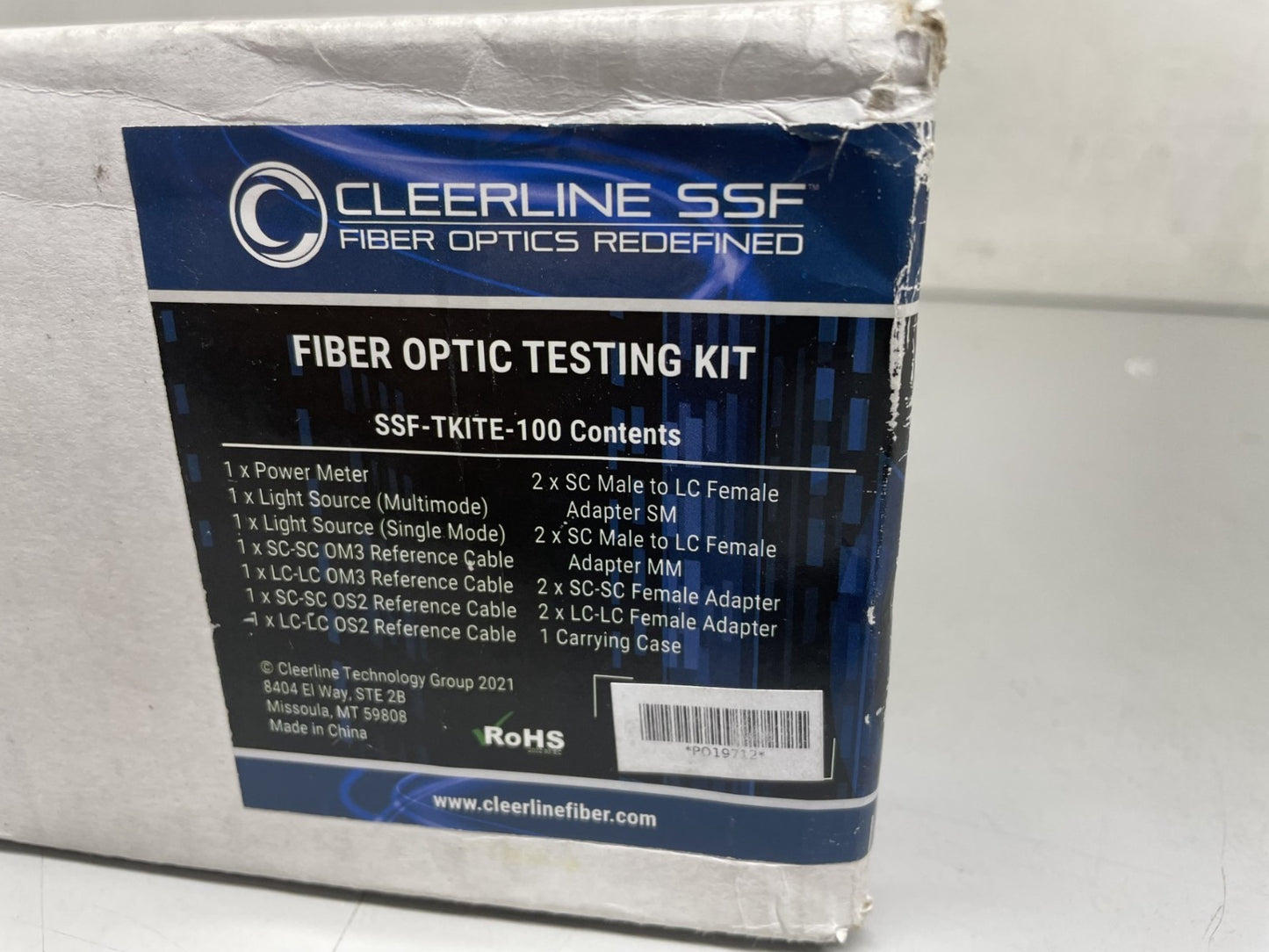

1 Power Meter

1 Light Source (Multi-mode): 850 nm, 1300 nm

1 Light Source (Single-mode): 1310 nm, 1510 nm

1 REFCBL-TKITE100 (MM & SM Reference Patch Cables)

2 SSF-SCLC-MMADP (SC Male to LC Female MM ADP)

2 SSF-SCLC-SMADP (SC Male to LC Female SM ADP)

1 SSF-SSCSC-MMADP (SC-SC Female MM ADP)

1 SSF-SSCSC-SMADP (SC-SC Female SM ADP)

1 SSF-SLCLC-MMADP (LC-LC Female MM ADP)

1 SSF-SLCLC-SMADP (LC-LC Female SM ADP)

1 Carrying Case
