Providing multiple colors, the TS003 capacitive touch switch provides clear and precise visual operational status. With no moving parts, low-profile mounting and encapsulated electronics, TS003 also provides protection from office contaminants affecting its operation. Comes with modular under desk mount controller for easy install.
Features
Self-calibrating

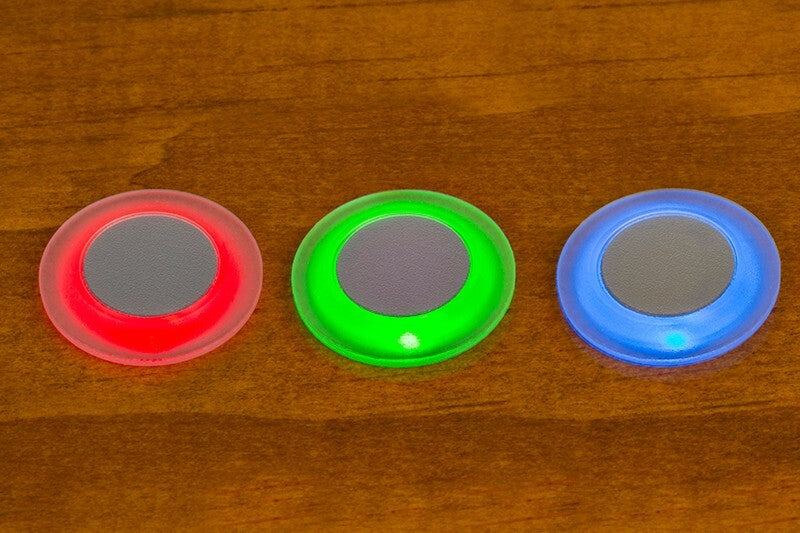

RGB LED provides multi-color combination for clear precise visual status of microphone or other devices
No moving parts and employing surface mount technology, ensures extreme reliability, longevity and trouble free use
Electronic circuitry fully encapsulated to protect operation from spills or other contaminants
Terminated with RJ 45 connector and supplied with a touch switch controller (TS-C1) allows connection via CAT 5E patch cable back to CDT-100 or directly to DSP
Programmable via DSP to operate in PTT, PTM or latching modes
12V DC operation using regulated power supply or CDT-100 (not included)
Fitted with 200mm cable that connects to TS-C1’s TS-IN
RS-IN on TS-C1 provides external switch connectivity
Maximum current consumption 70mA

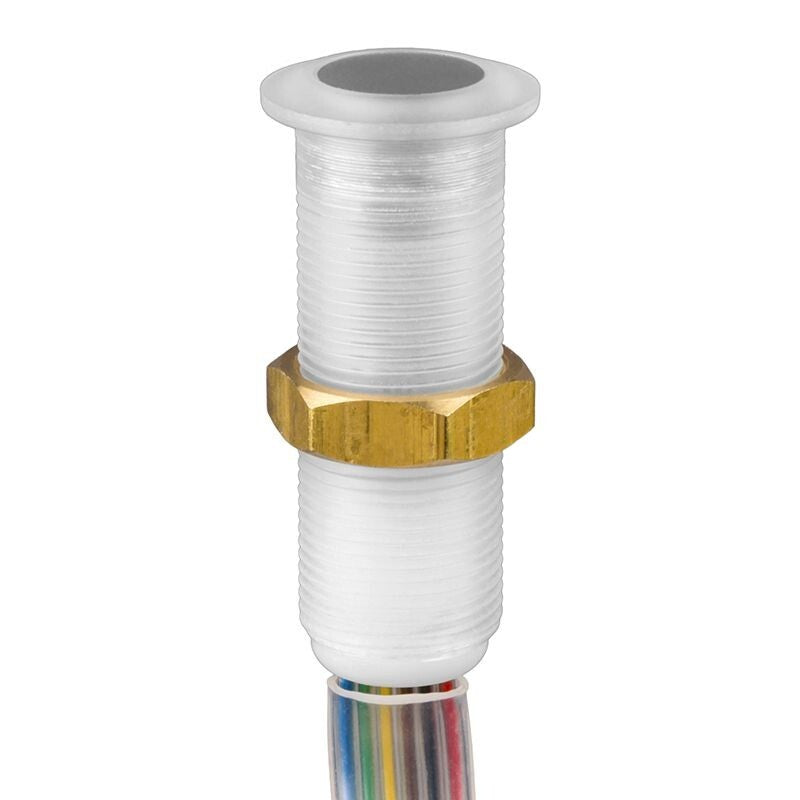

Supplied with M15 nut for table fixing
Finished in clear polycarbonate
