Crestron

Crestron DMC-4KZ-CO-HD 2-Channel DM 8G+ 4K60 4:4:4 HDR Output Card DM Switchers

Crestron DMC-4KZ-CO-HD 2-Channel DM 8G+ 4K60 4:4:4 HDR Output Card DM Switchers

$49.97
$0.00 $49.97
Sale Sold out

Brand: Crestron

Type: Output Card

Country of Origin: Mexico

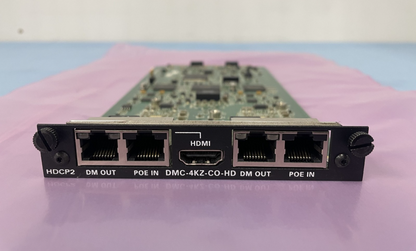

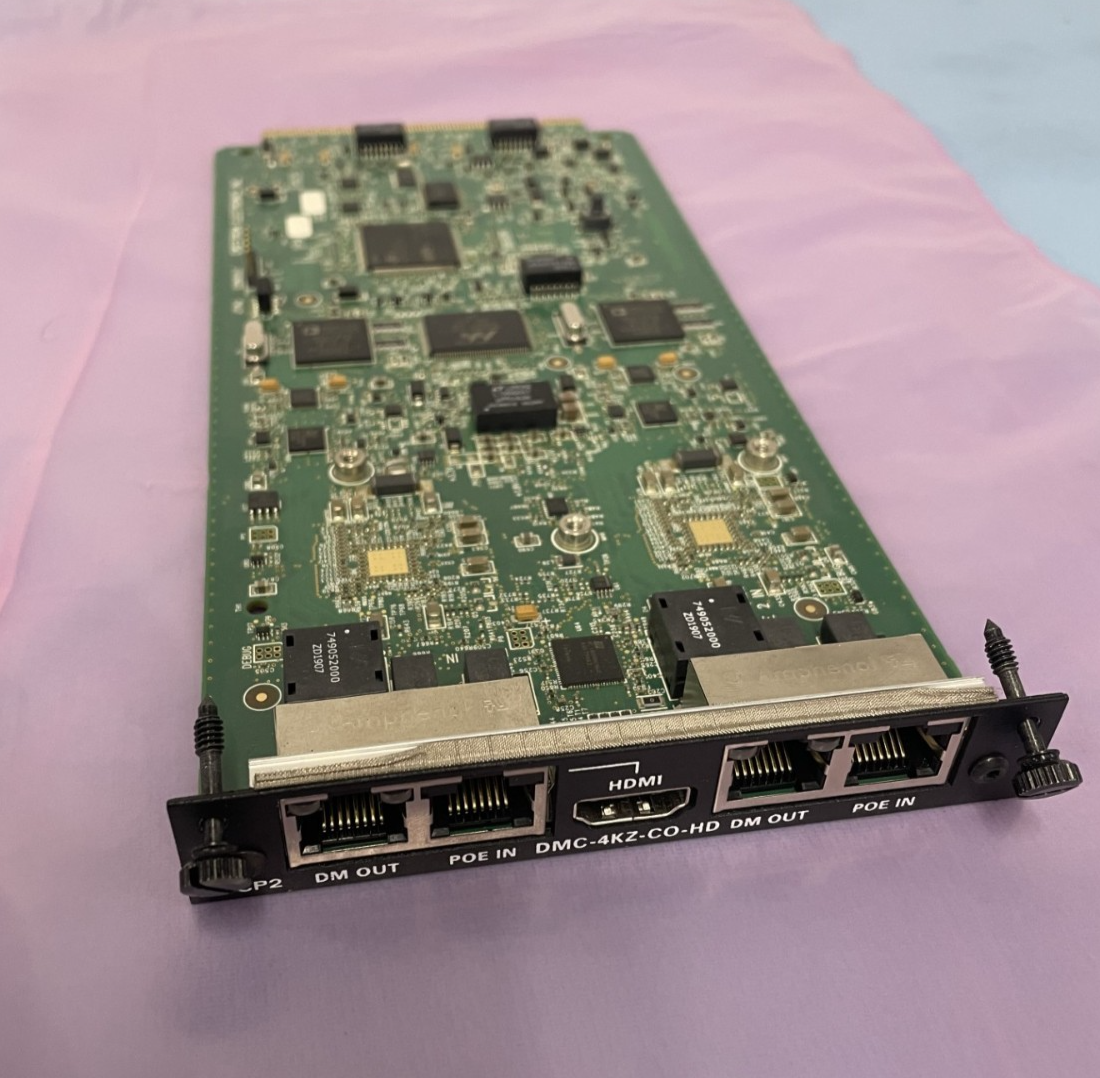

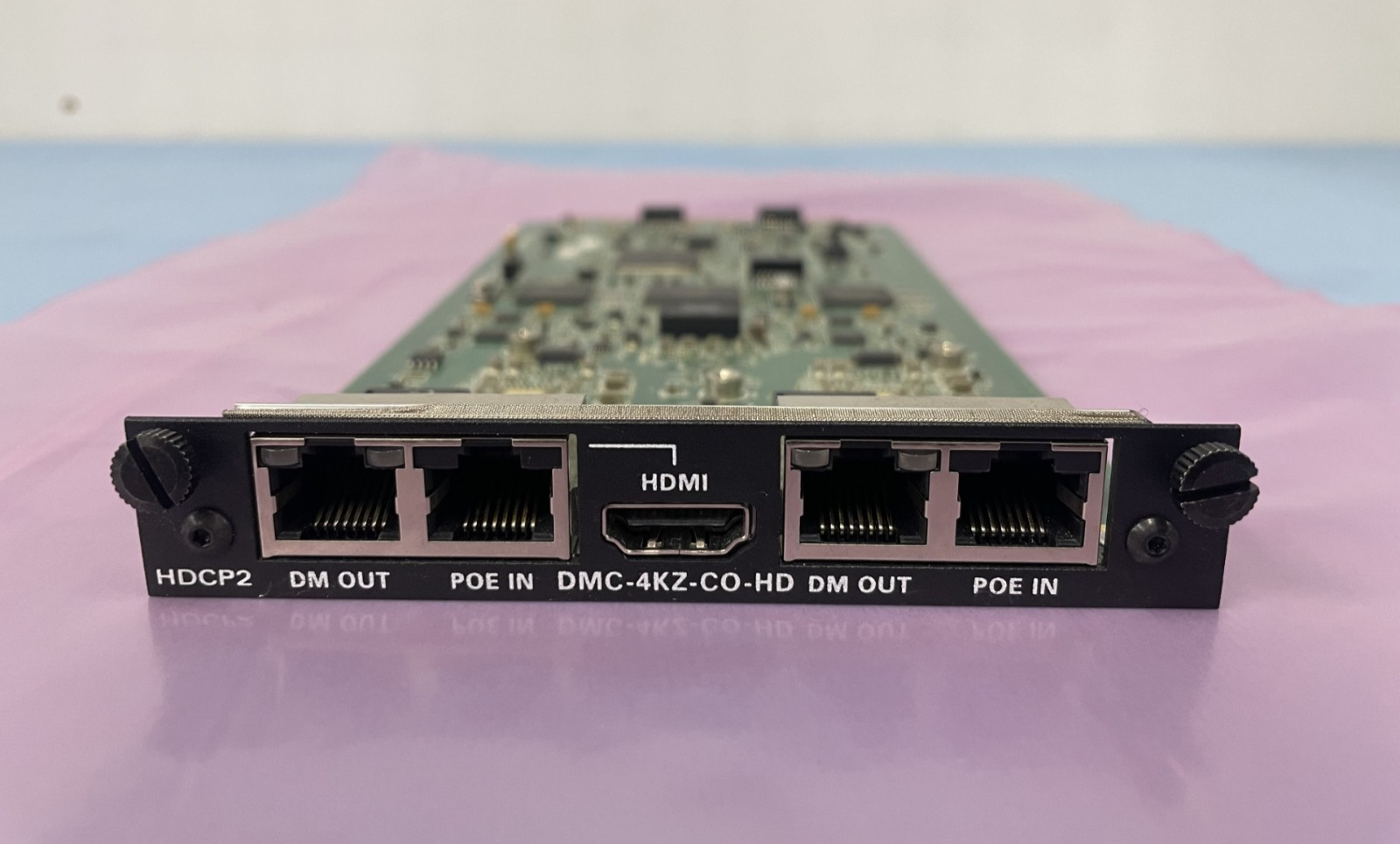

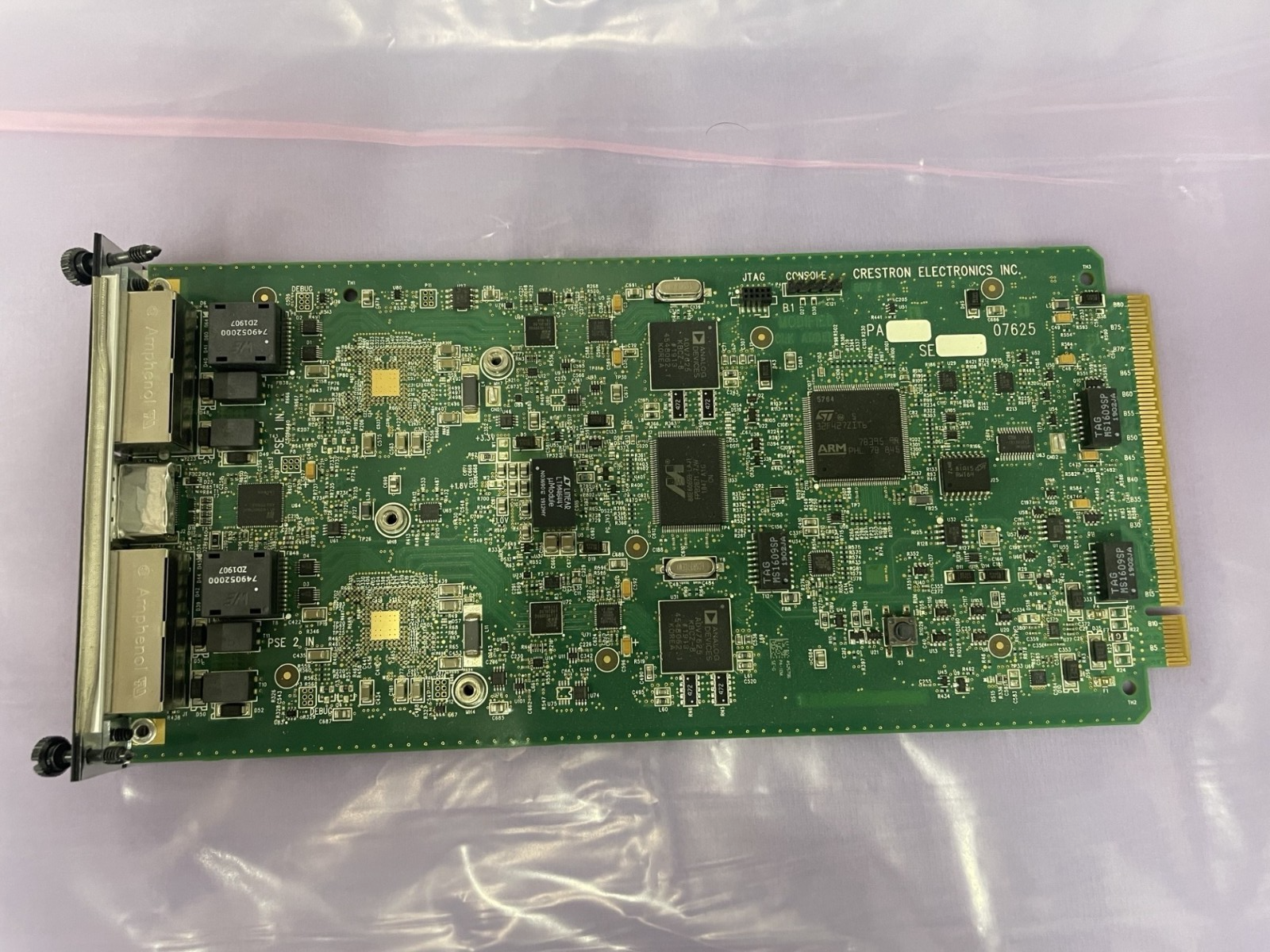

You are bidding on a Crestron DMC-4KZ-CO-HD output card/module.  This card was removed from a Crestron switcher prior to integration into client's facility.  It is in excellent, unused condition - and has been professionally handled!

Overview

The DMC-4KZ-CO-HD is an output card designed for use with any card-based Crestron DigitalMedia Switcher.  It provides two independent DM 8G+ outputs, plus one HDMI® output. The HDMI output carries the same signal as the first DM 8G+ output.  Both DM 8G+ outputs are compatible with HDBaseT. Using a single CAT type twisted pair cable, each DM 8G+ output enables connection to a DM 8G+ receiver, the input of another DM switcher, or an HDBaseT certified display device or receiver.

Key Features
  • Modular output card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides two independent 4K DM 8G+® outputs
  • HDBaseT compatible — Enables direct connection to other HDBaseT certified equipment
  • Includes a parallel HDMI port on the first output
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10)
  • Handles 3D video and Deep Color
  • Handles Dolby TrueHD, Dolby Atmos®, DTS HD®, DTS:X, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM® Ultra cable
  • Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e
  • Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e
  • Enables HDMI and HDBaseT device control via CEC
  • Supports PoDM and HDBaseT PoE power sourcing
  • Occupies a single DM switcher output card slot
Shipping

Standard shipping anywhere in the contiguous United States is FREE!
View full details
