DAS Audio DECO-6TB 6" Ceiling mount Loudspeaker / Speaker 70Hz-20kHz 70v/100v

DAS Audio DECO-6TB 6" Ceiling mount Loudspeaker / Speaker 70Hz-20kHz 70v/100v

$85.95
$85.95
Sale Sold out

Brand: DAS

Type: Studio Monitor

Model: DAS Audio Action-515A 1000W

Connectivity: Wired

UPC: 8436542219358

MPN: DECO-6TB


DAS Audio DECO-6TB  6" Ceiling mount Loudspeaker / Speaker

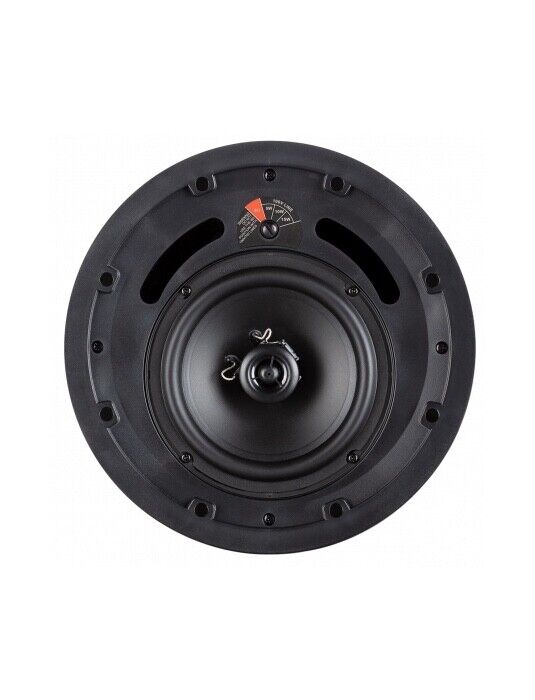

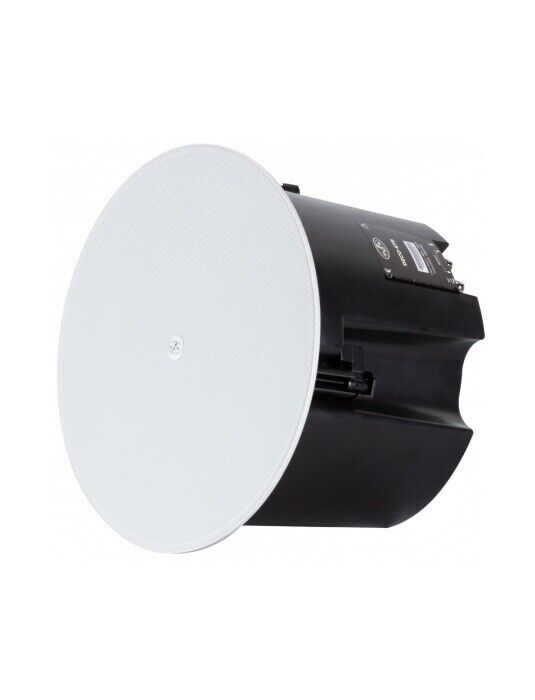

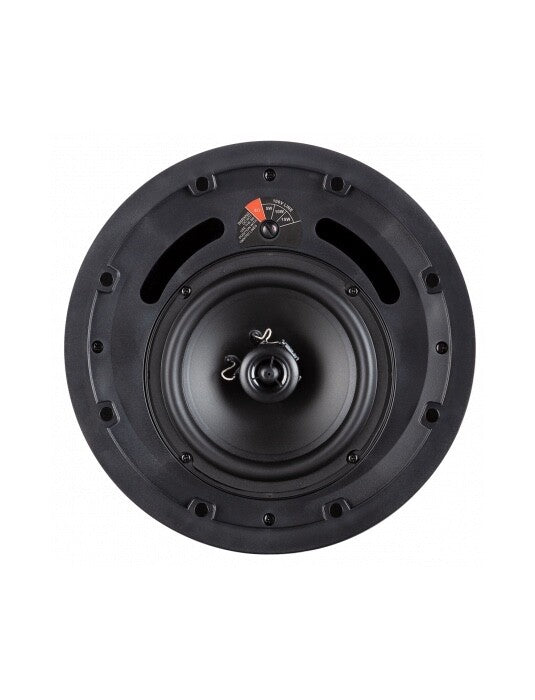

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings. The DECO-6TB is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V in-line transformer with multi-pass selector accessible from the front and it is designed for both high and low impedance. It includes a high pressure injected thermoplastic back cover.
Performance
Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 95º
Nominal Impedance 8 ohms
Transformer Taps 70 V Tap0, Low Z. Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
Transformer Taps 100 V Tap0, Low Z. Tap1, 5 W. Tap2, 10 W. Tap3 15 W.
On-axis Sensitivity 1W/1 m 90 dB SPL
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
Connectors
Audio Input Connector Spring Terminals
Audio Output Connector Spring Terminals
Enclosure
Enclosure Geometry Round
Color White
Cut Out Diameter 250 mm (9,9 in)
Depth 185 mm (7,3 in)
Dimensions ( H x W x D ) 275 x 275 x 185 mm
11,0 x 11,0 x 7,3 in
Net Weight 1,9 kg ( 4,2 lb )
Shipping
Carton Dimensions ( H x W x D ) 310 x 300 x 450 mm
12,2 x 11,8 x 17,7 in
Shipping Weight 2,2 kg ( 4,9 lb )
