Extron

Extron ECM S10 Partition Sensor Set For EBUS or Digital I/O (P/N: 60-1705-03)

Extron ECM S10 Partition Sensor Set For EBUS or Digital I/O (P/N: 60-1705-03)

$449.19
$0.00 $449.19
Sale Sold out

1 in stock

Brand: Extron

Type: Partition Sensor

Model: ECM S10

MPN: 60-1705-03

Unit Quantity: 1

Country of Origin: United States

Extron ECM S10 Partition Sensor Set For EBUS or Digital I/O (P/N: 60-1705-03)

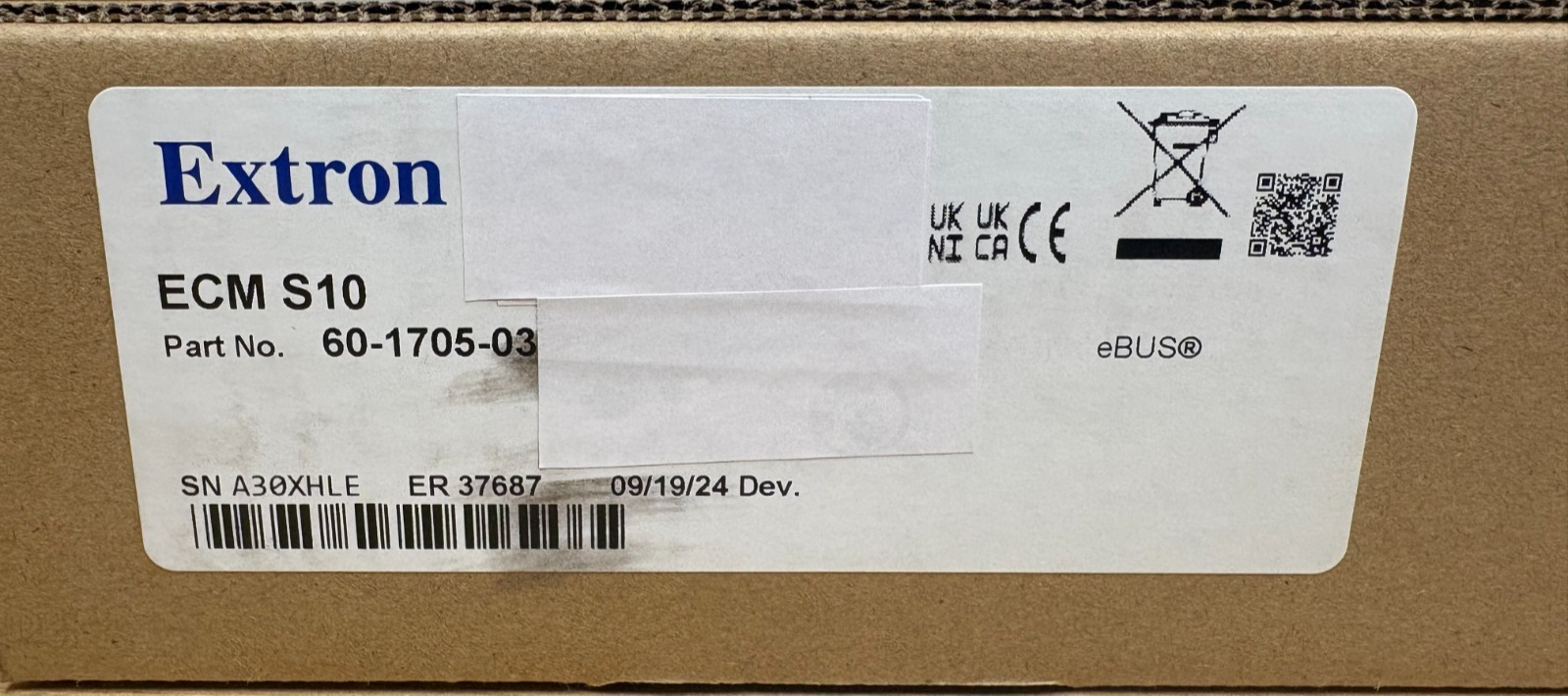

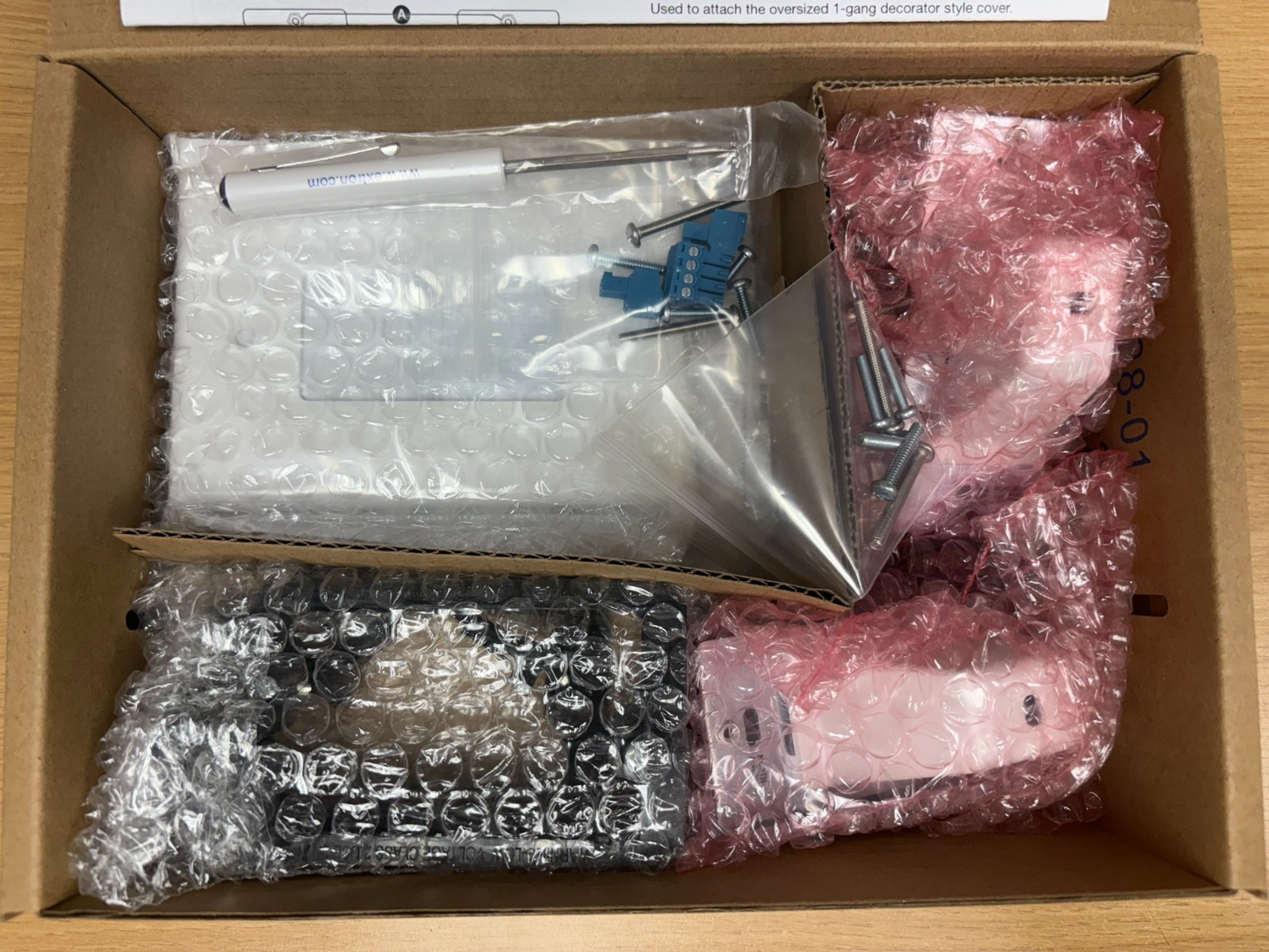

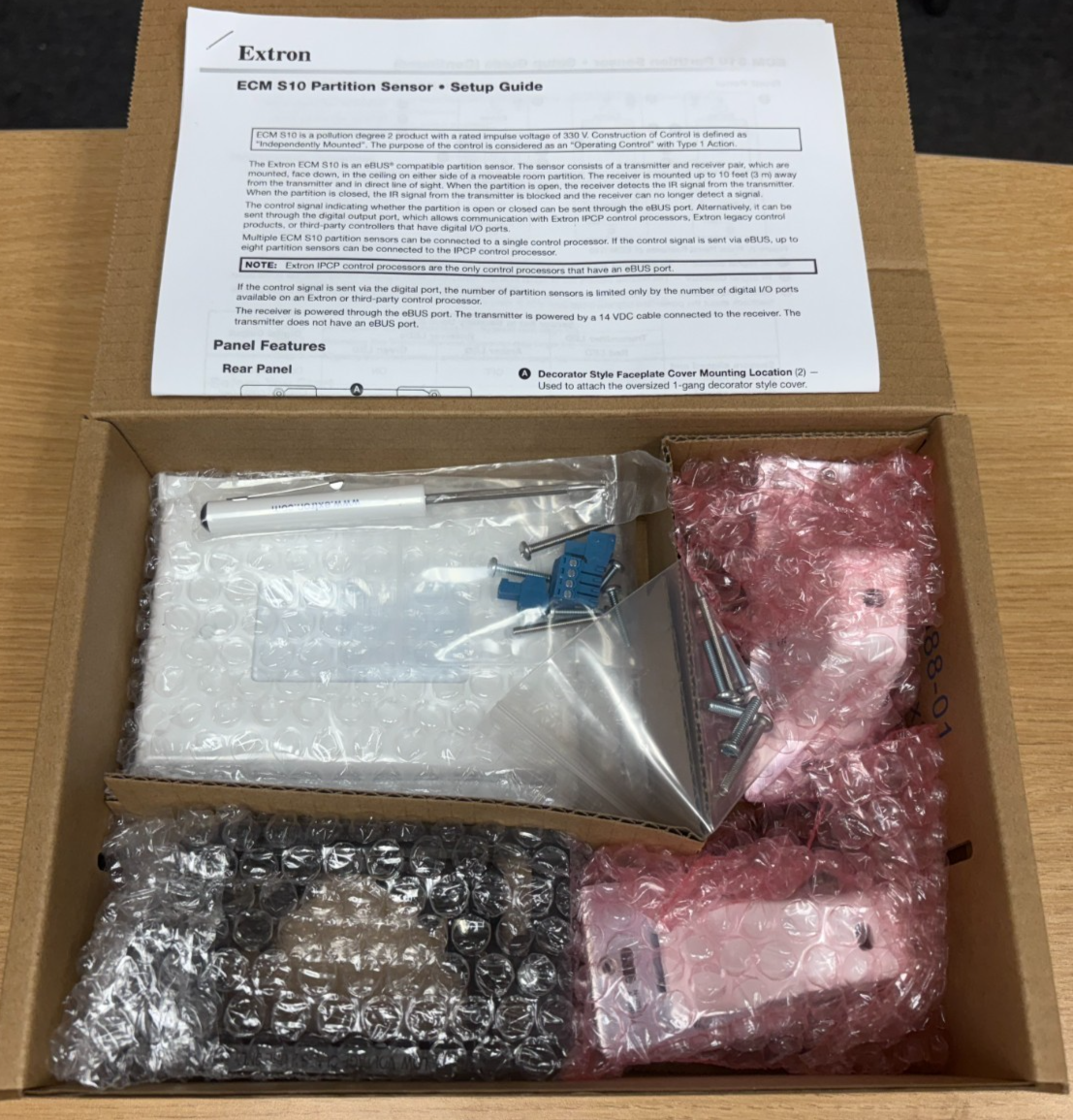

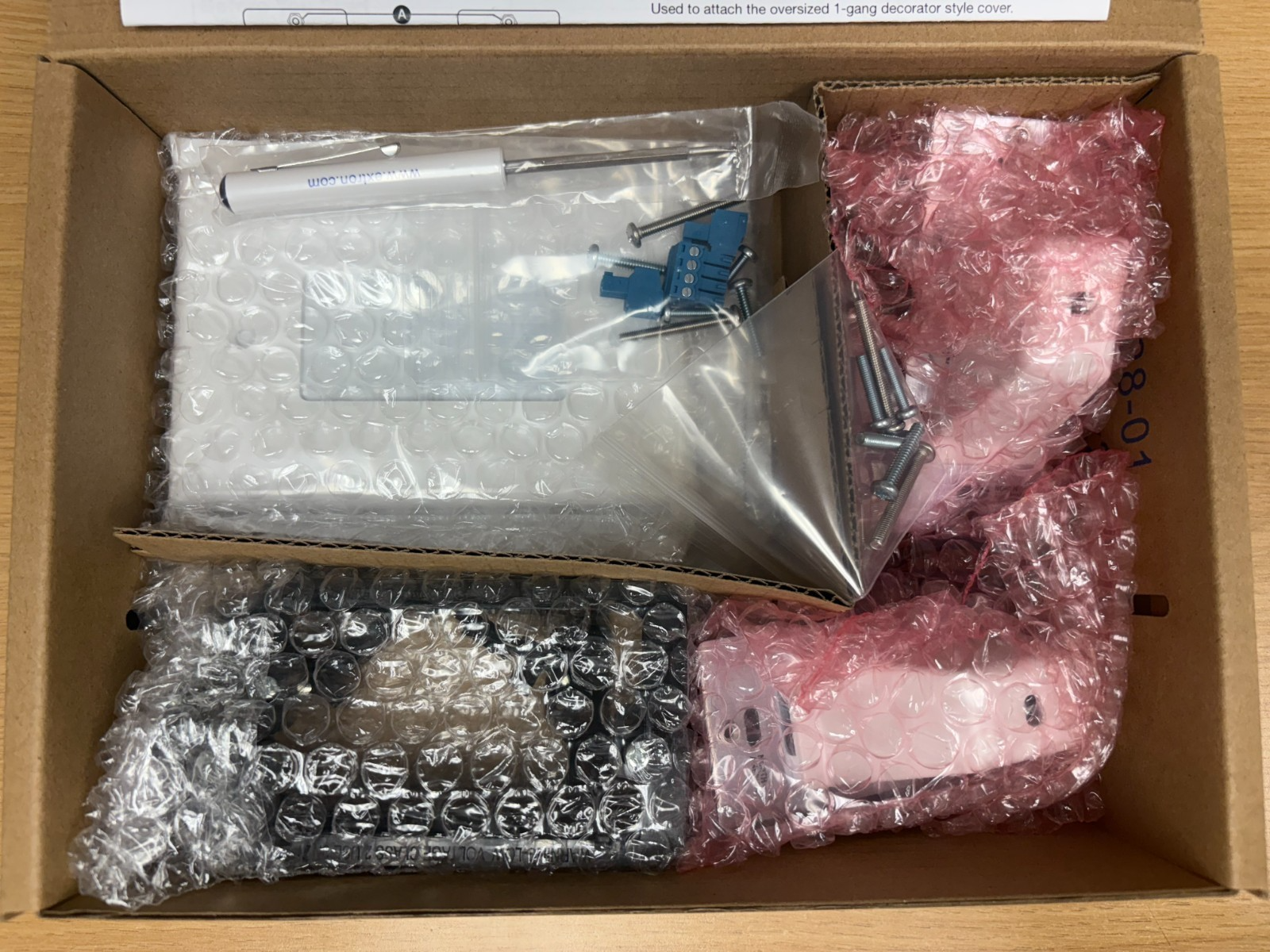

***New / open box. Purchasecd for a project, opened, and never installed.***

  • 14VDC output on receiver is used to power the transmitter
  • Removable captive screw connectors allow for quick installation
  • Transmitter and Receiver can be positioned up to 10 feet (3 meters) apart
  • Receiver module has adjustable sensitivity and logic output state controls
  • DIP switches are used to set unique eBUS device addresses and minimize setup time
  • eBUS port — Allows for easy connection to an eBUS device or IPCP Pro control processor.
  • Compatible with all Extron IPCP Pro control processors and other products featuring a digital I/O
  • Various eBUS diagnostic LEDs provide connection, communication, and ID status for troubleshooting
  • Digital output — Allows for integration with non-eBUS compatible systems that have digital I/O ports.
  • eBUS-enabled receiver connects to the control processor using a single cable that carries both power and communication
  • Partition sensor set that automates system behavior based on the position of a moveable wall within divisible rooms
