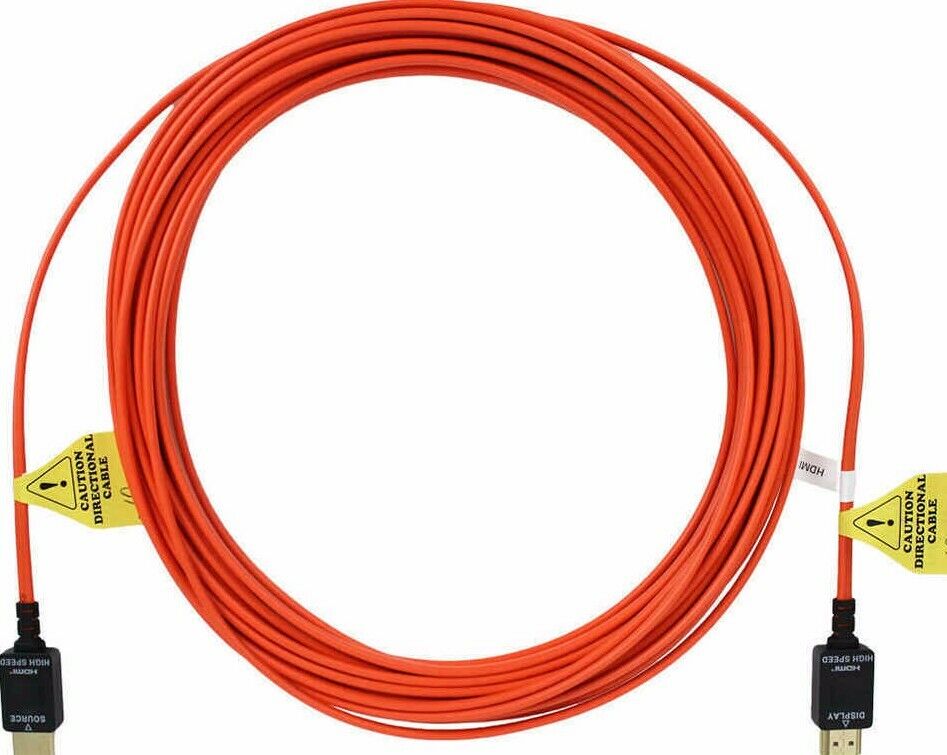

FSR Video Products 4K High Speed Full HD HDMI Digital Ribbon Cable / NEW

FSR Video Products 4K High Speed Full HD HDMI Digital Ribbon Cable / NEW

Regular price $39.00
Regular price Sale price $39.00
Sale Sold out
Cable Length

Brand: FSR

Type: HDMI Cable

MPN: 17855,17856,17857

New! FSR Video Products Group 4K HDMI Digital Ribbon Cable

You are bidding on a new FSR high-speed, high-definition HDMI ribbon cable.  This cable was ordered for a corporate project - but never used.  It is still new in the manufacturer's packaging!  We have many cable lengths available:

  • DR-PCB-H10M+ (Part #17855)   10 Meters / 33 Feet
  • DR-PCB-H15M+ (Part #17856)   15 Meters / 50 Feet
  • DR-PCB-H23M+ (Part #17857)   23 Meters / 75 Feet
  • DR-PCB-H30M+ (Part #17858)   30 Meters / 100 Feet
  • DR-PCB-H100M (Part #17506)   100 Meters / 328 Feet

Description / Overview

     FSR's DR-PCB-DxxM+ digital ribbon cables utilize a proprietary technology to allow high speed, high definition HDMI signal transmission over very long distances!  Active circuitry embedded in the connector shells provide all the active signal buffering needed, and eliminate additional bulky electronics.
     The cables hybrid polymer/copper structure delivers a speed of 15 Gb/second video bandwidth and can easily handle up to 4K 60Hz@4:2:2 sampling full HD, 3D, Deep Color, HDMI-CEC, HDCP and most newer hi-res formats.  The small ribbon shaped jacket is only 5mm x 2.5mm and available in different lengths.  The cables are UL listed, plenum-rated and provide optical performance at the price and simplicity of copper!
     With optical-to-electronic conversion contained inside the connectors, this cable uses the same standard HDMI ports as copper cables.  The cables require no bulky external power connectors or extenders, instead drawing power from the HDMI port without exceeding HDMI maximum power output standards.
     Optical communications provide immunity to electromagnetic and radio-frequency interference and offer high reliability in challenging environments such as outdoor displays, convention centers, stadiums, airports, shopping malls, hospitals, factories and other potentially high noise environments.
     The optical component within the ribbon cable bundle is plastic fiber rather than glass and can be installed in areas that require tight cable bends that were prohibitive with a conventional fiber bundle.


- Overcomes distance limitations of conventional HDMI cables
- Cost competitive
- Uncompromised signal integrity
- Multi-format compatibility
- No external power or special tooling required
- Cables and connectors fit easily within a 1" conduit
- Plenum rated
- UL listed
- Supports DDC for DHCP and EDID
- Supports PCM, Dolby, DTS-HD and True HD audio


Standard shipping anywhere in the United States is FREE!
