Kramer

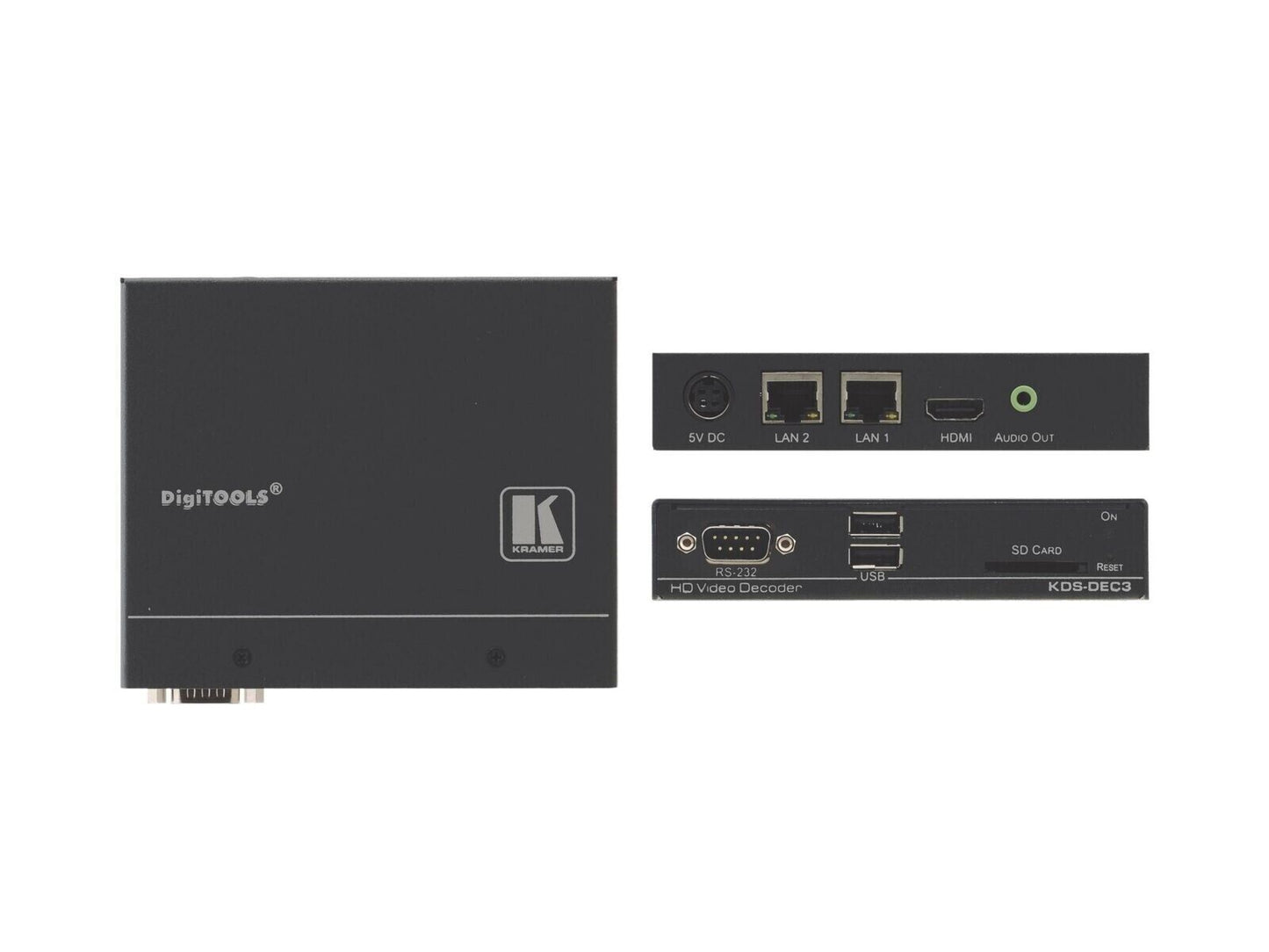

Kramer KDS-DEC3 HD Video Decoder P/N: 60-00002890

Kramer KDS-DEC3 HD Video Decoder P/N: 60-00002890

Regular price $129.95
Regular price Sale price $129.95
Sale Sold out

Brand: Kramer

Type: AV Over IP

Model: KDS-DEC3

MPN: KDS-DEC3

Kramer KDS-DEC3  HD Video Decoder   P/N: 60-00002890

Kramer KDS-DEC3 is an H.264 decoder for encoded signals up to 1080p60. It is designed to work with the KDS-EN3 H.264 encoder to provide a high-quality and fully-featured end-to-end video and audio over IP solution.

Features

  • AVC Support - MPEG-4 using H.264 & AAC codecs.
  • Scaling & Cropping Features - For flexible display of source content on the decoder output.
  • Standard Ethernet Network Operation - 10/100/1000Mb.
  • Decoder-Integrated Network Switch - Allows for KDS-DEC3 daisy chaining and network extension.
  • Video Support - HDMI.
  • Audio Support - HDMI or analog.
  • Streaming Support - Unicast and multicast through RTSP (Real Time Streaming Protocol).
  • KDS-EN3 Manager Software - Allows remote management of the KDS-EN3 network including auto-detection and discovery of KDS-EN3/KDS-DEC3 units on a subnet.
  • Fail-safe Video Playback - When a decoder loses its connection to an encoder.
  • RS-232 Virtualization - From encoder to decoder.

Specifications:

OUTPUTS:  1 HDMI, 1 unbalanced stereo audio on a 3.5mm mini jack.
PORTS:  2 Ethernet on RJ-45 connectors (fully switched), 1 RS-232 on a 9-pin D-sub connector.
VIDEO SINGLE CHANNEL HD:  Up to 1920x1080p60 and 1920x1200(60Hz).
COMPRESSION STANDARD:  H.264/Mpeg4 Part 10 (AVC).
PROFILES:  Baseline, Main, High.
LEVELS:  Up to 4.2.
BIT RATES:  100Kbps to 25Mbps.
RATE CONTROL:  CBR, VBR, adjustable GOP (Group Of Pictures) size.
AUDIO COMPRESSION STANDARD:  MPEG4 AAC-LC.
CHANNELS:  2 channel (stereo), HDMI with digital L-PCM audio.
ANALOG SAMPLE FREQUENCY:  32, 44.1, and 48kHz.
BIT RATES:  96, 128, 192, and 256Kbps.
OUTPUT RESOLUTIONS:  1280 × 960, 1280 × 768, 1280 × 720, 1024 × 768, 852 × 480, 848 × 480, 800 × 600, 720 × 576, 720 × 480, 640 × 480 1600 × 900, 1440 × 900, 1400 × 1050, 1366 × 768, 1360 × 768, 1280 × 1024, 1280 × 960, 1280 × 768, 1280 × 720, 1024 × 768, 852 × 480, 848 × 480, 800 × 600, 720 × 576, 720 × 480, 640 × 480.
POWER CONSUMPTION:  5V DC, 3A max.
OPERATING TEMPERATURE  0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:  -40° to +70°C (-40° to 158°F).
HUMIDITY:  10% to 90%, RHL non-condensing.
DIMENSIONS:  12.8cm × 2.6cm × 10.9cm (5.05" × 1.02" × 4.29").
WEIGHT:  0.36kg (0.26kg).
INCLUDED ACCESSORIES:  Power supply, power cord, plastic bracket set.
