Liberty AV DigitaLinx DL-2H1V1U-WP-W 4K HDMI VGA USB Extender w/ Display Control

Liberty AV DigitaLinx DL-2H1V1U-WP-W 4K HDMI VGA USB Extender w/ Display Control

$350.00
$350.00
Sale Sold out

Brand: Liberty AV Solutions

Type: Transmitter

Compatible Model: Liberty AV DigitaLinx DL-2H1V1U-WP-W

MPN: DL-2H2V1U-WP-W

Liberty Digitalinx DL-2H1V1U-WP-W

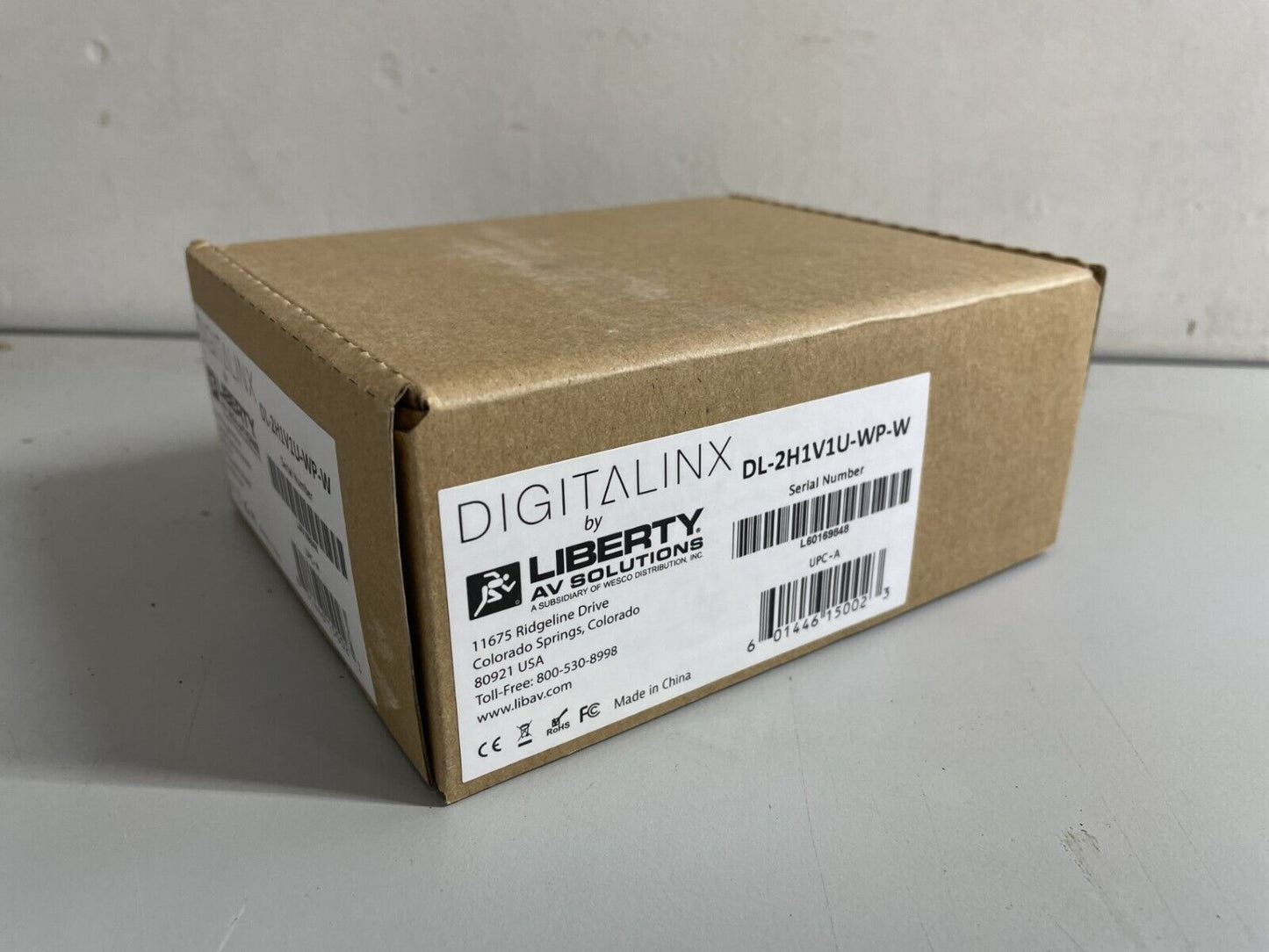

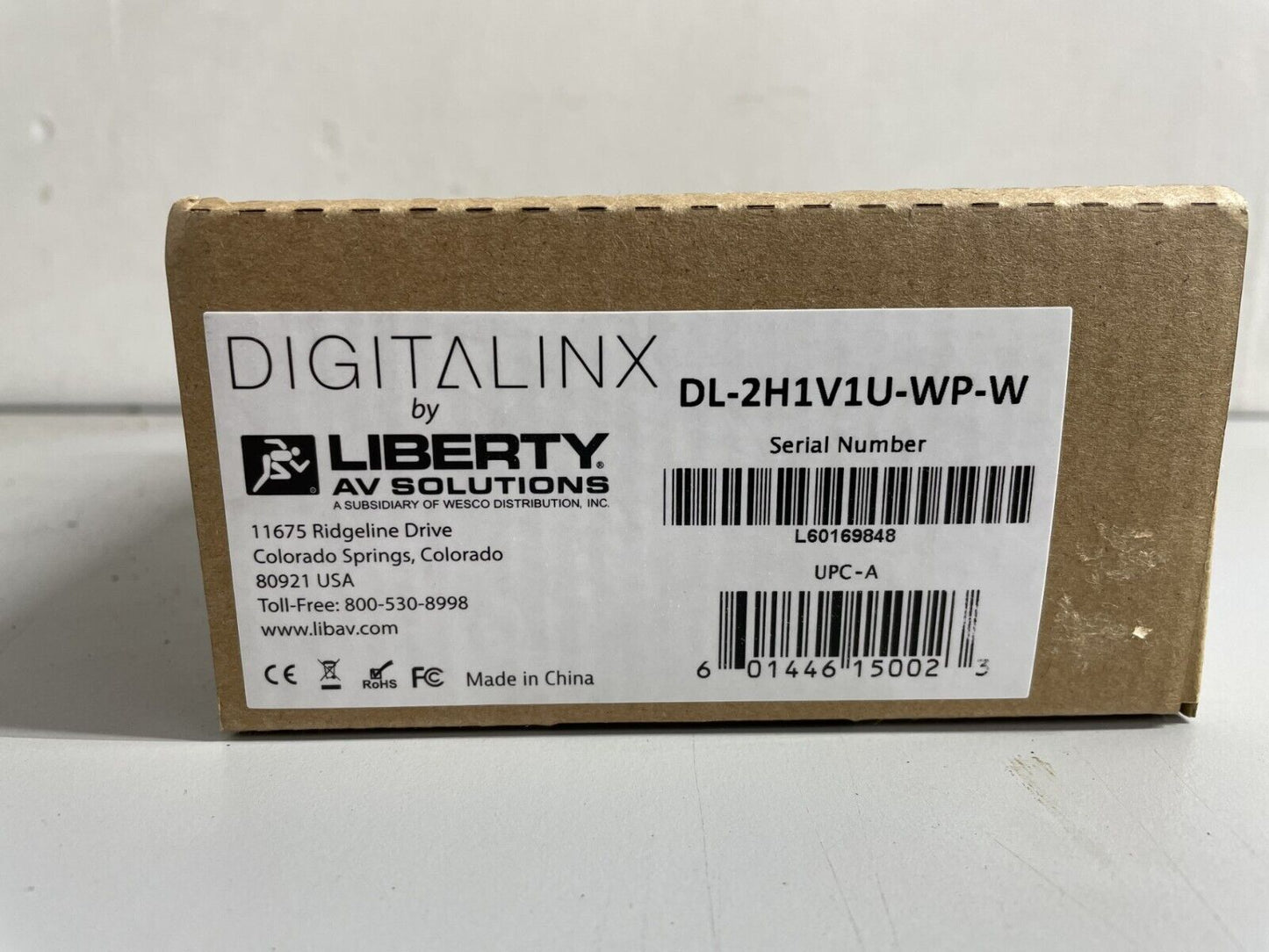

You are bidding on a new Liberty Digitalinx auto-switching HDBaseT 2.0 audio, video & USB transmitter.  This unit was ordered for a corporate project - but never integrated.  It is still new in the manufacturer's packaing!

Description/Overview

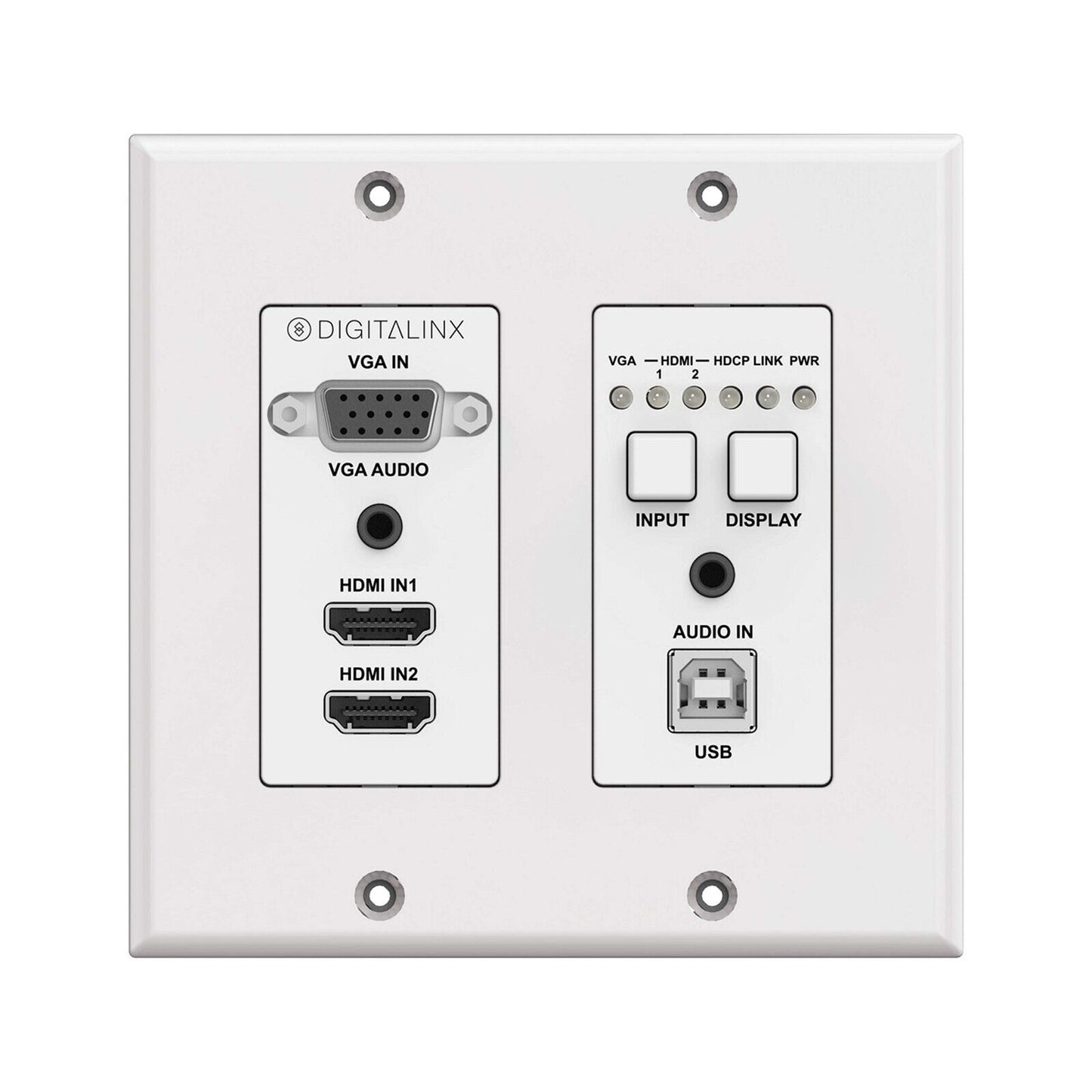

The DigitaLinx DL-2H1V1U-WP-W is a 3x1 auto switching HDBaseT 2.0 audio, video and USB transmitter that supports the long distance transport of HDMI, VGA and High Speed USB 2.0 signals up to 100 meters / 330’ using category cabling. The DL-2H1V1U-WP-W is 4K compatible with a max resolution of 4K@60Hz / 4:2:0 8bit deep color. An additional analog audio input is located on the wall plate that allows for independent audio pass through to a compatible Digitalinx HDBaseT receiver (not included).

Features

  • Auto Switches & Extends HDMI, Analog Audio, and USB 2.0 up to 100m / 330’
  • Integrated RS232 controller can automatically or manually power on/off display
  • Supports resolutions up to 4K@60Hz 4:2:0 / 8 bit deep color
  • Supports HDCP 2.2
  • Pass-Through Analog audio port passes audio direct to audio output of receiver independent and regardless of video source
  • Auto Switching and Front Panel Input and Display on/off Selection
  • Supports remote PoE power from receiver
  • NOTE: Requires the use of the DL-HD2A-RX receiver
