RGB Spectrum QuadView UHD Multi-Image Processor & Presentation Scaler/Switcher

RGB Spectrum’s QuadView UHD is a high-performance multi-image processor and presentation scaler/switcher designed for displaying up to four sources simultaneously in a variety of creative layouts.

Connect the QuadView UHD to any monitor or projector from XGA up to 4K/UHD resolution, and you’re ready for the next generation in multiviewer performance. Mix and match input resolutions, and scale any video input up to UHD and route any input to any window. Both HD and UHD inputs can be displayed without downscaling, taking full advantage of the QuadView UHD’s remarkable image processing.

Audio follow and audio breakaway modes are standard, and theQuadView UHD enables you to select audio from any source — even one not currently displayed.

The QuadView UHD multiviewer also includes HDCPauthentication and EDID management functionality.

Multiple control methods include the front panel, a web interface,and an IR remote. Third-party control is supported via Ethernetand RS-232.

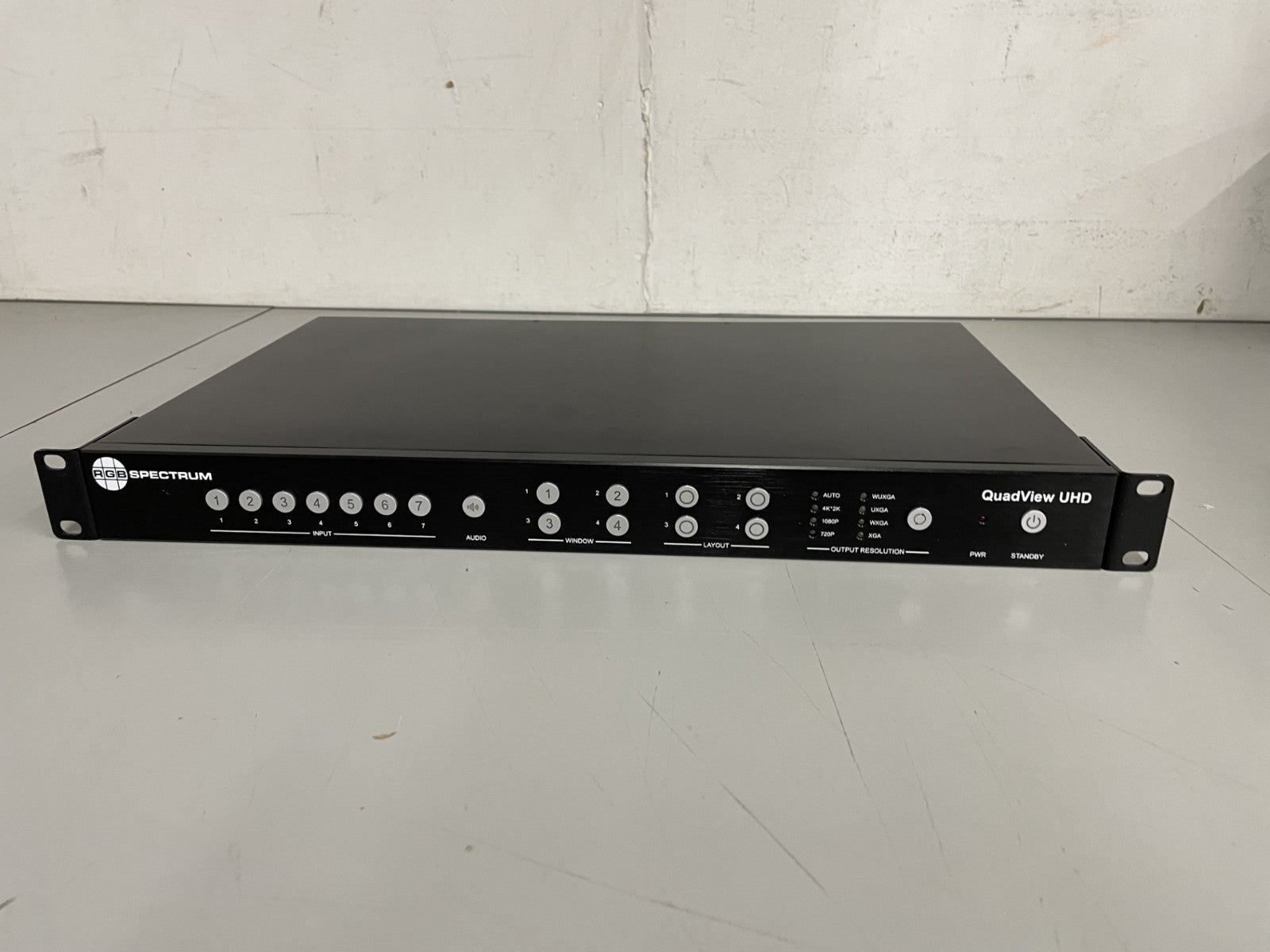

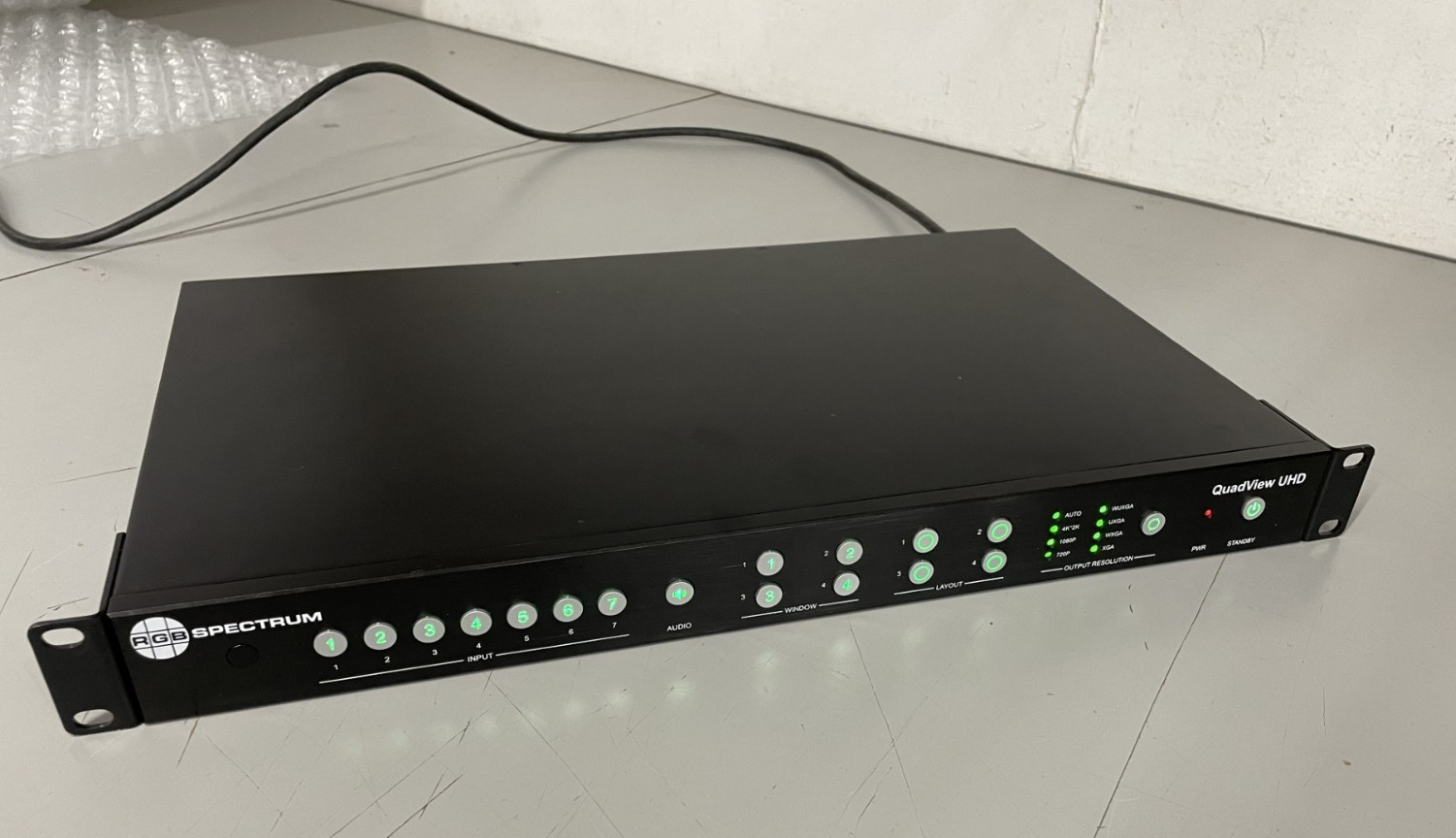

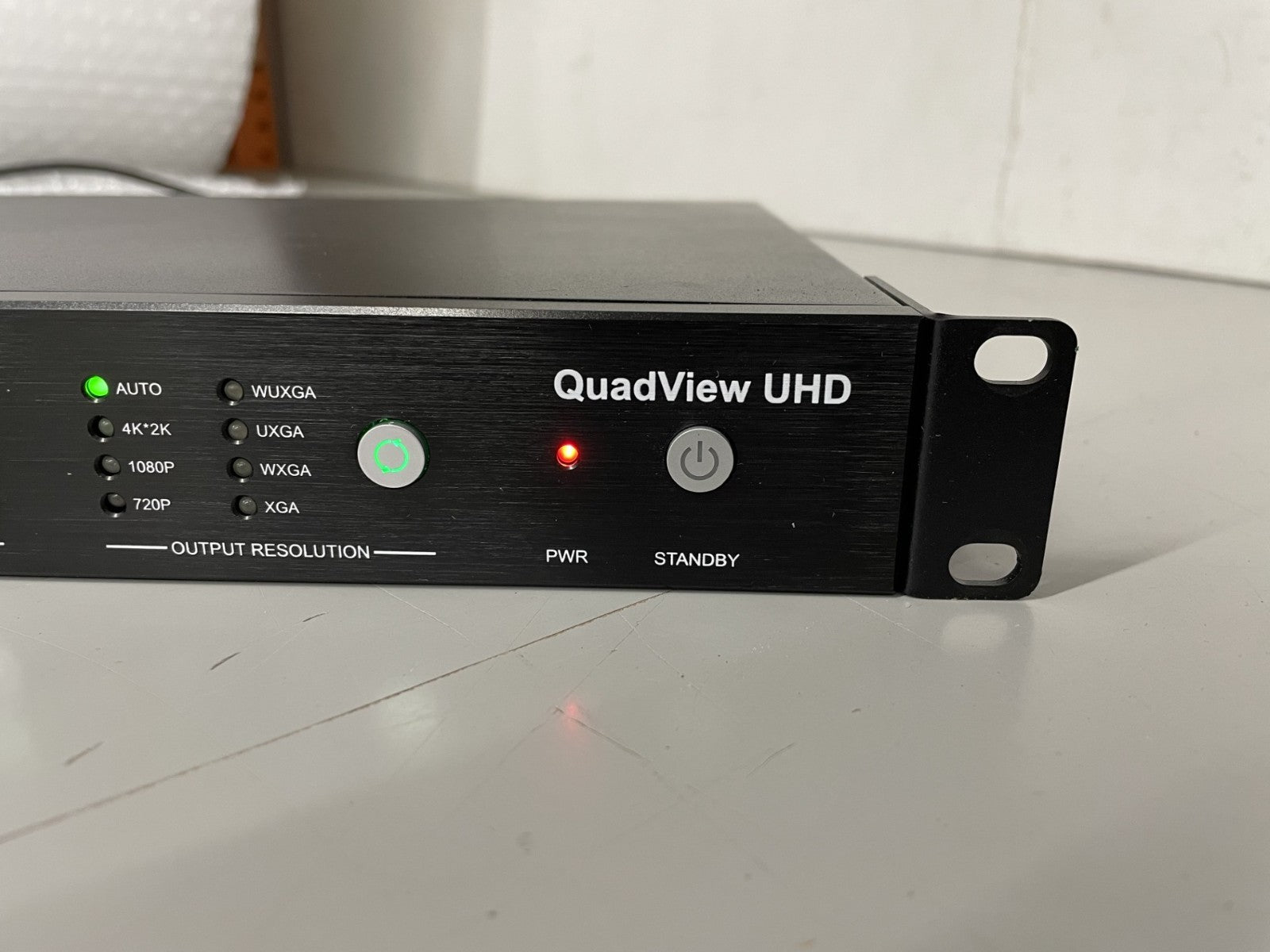

The QuadView UHD front panel is simplicity itself, enabling audio,video input and layout selection. Up to 16 layouts are provided —including quad split, full screen, triple windows, and side-by-side mode. Simply select a layout, select inputs, and route to the desired windows.

The versatile QuadView UHD allows users to fully capitalize on the benefits of 4K UHD with speed, simplicity, and superb video

quality. From the boardroom to digital signage to the control room, the QuadView UHD represents the next evolution in multiviewer technology.

• I/O resolutions up to 4K UHD

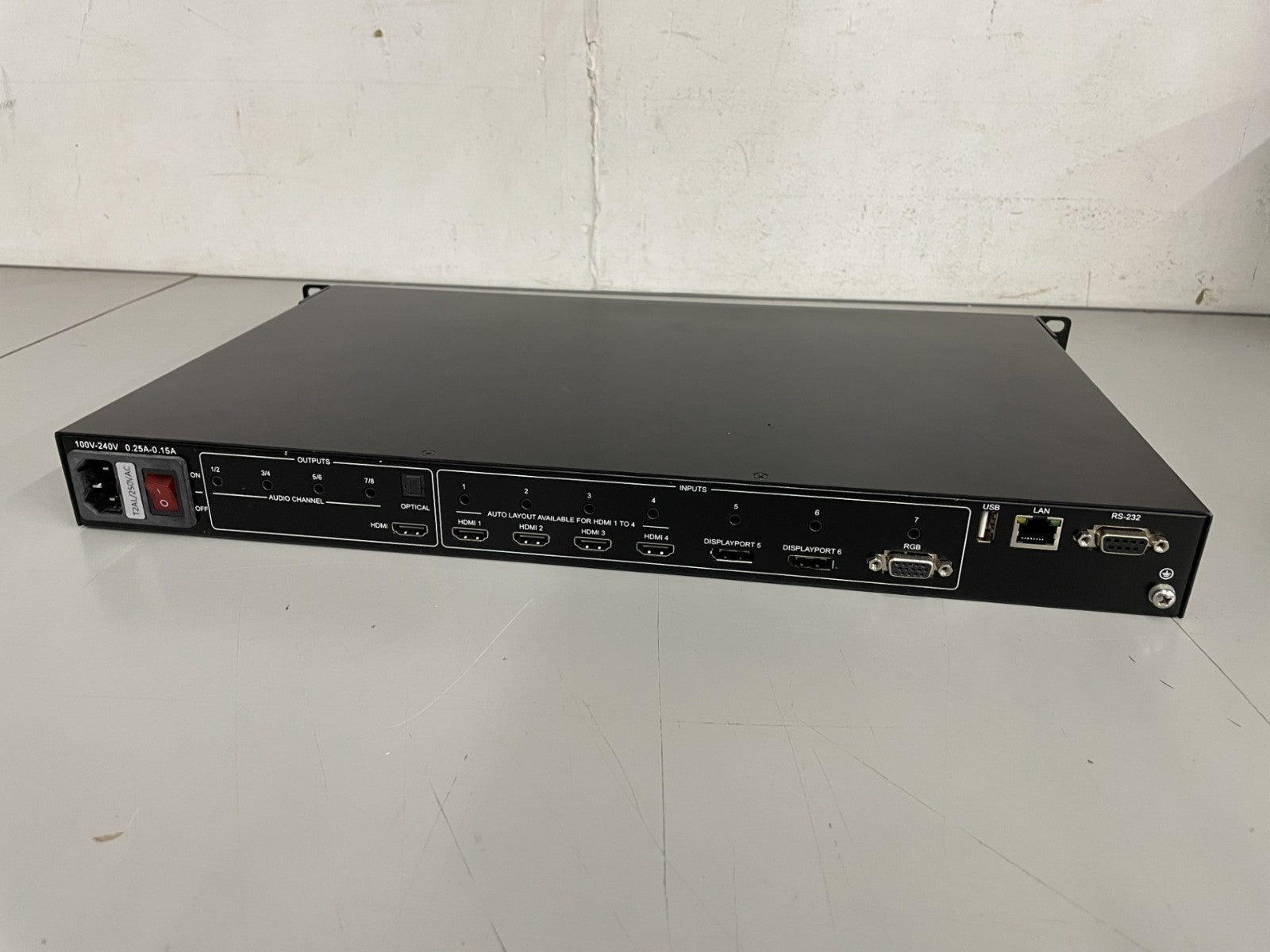

• Multiple inputs:

 4X HDMI

 2X DisplayPort

 1X RGB

• HDMI 1.4b output

• 16 preset layouts

• Auto scaler for every input

• HDCP compliance and EDID management

• Analog and optical audio outputs

• Audio follow and audio breakaway modes

• Control via Web GUI, IR remote, and RS-232
