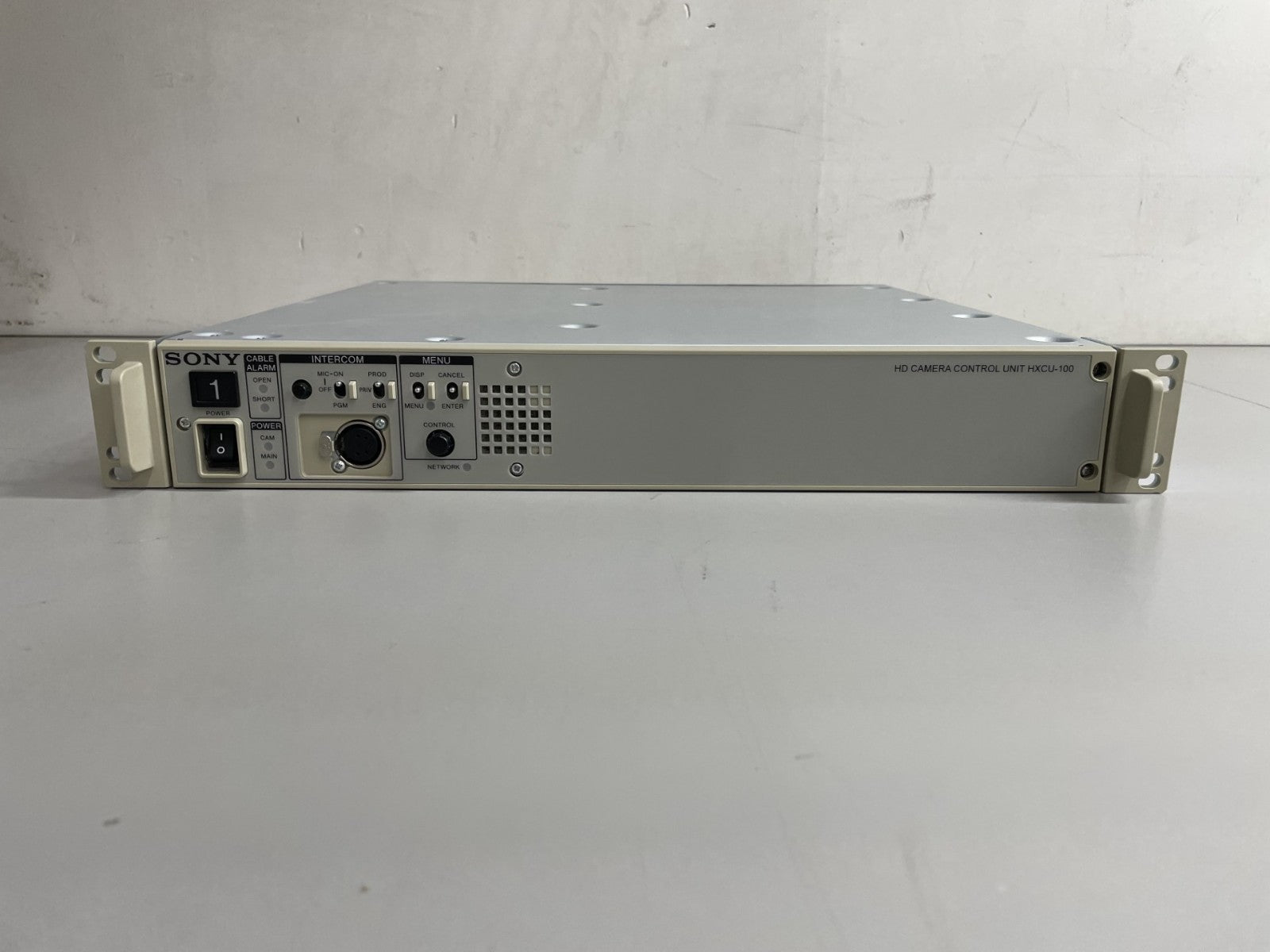

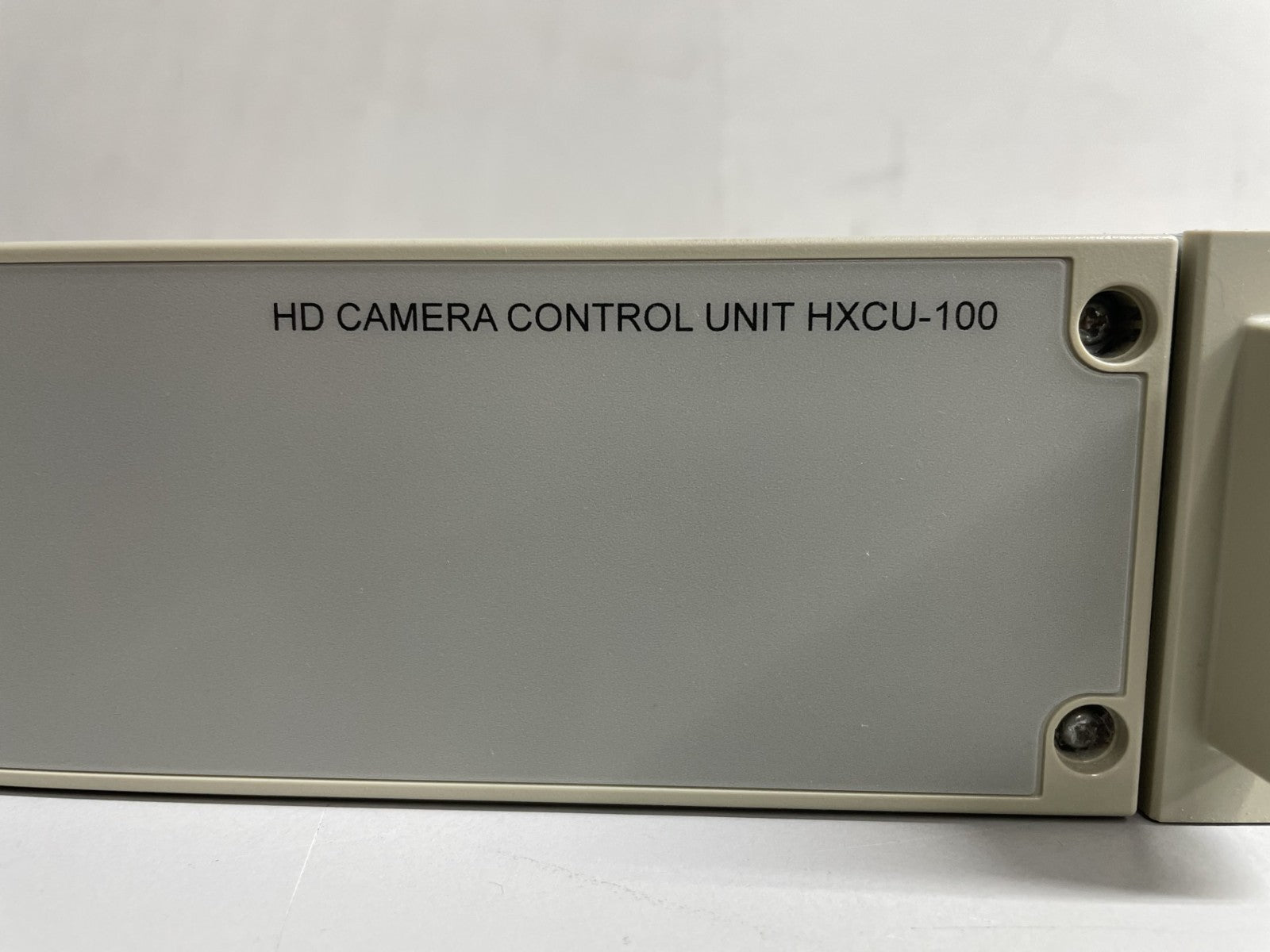

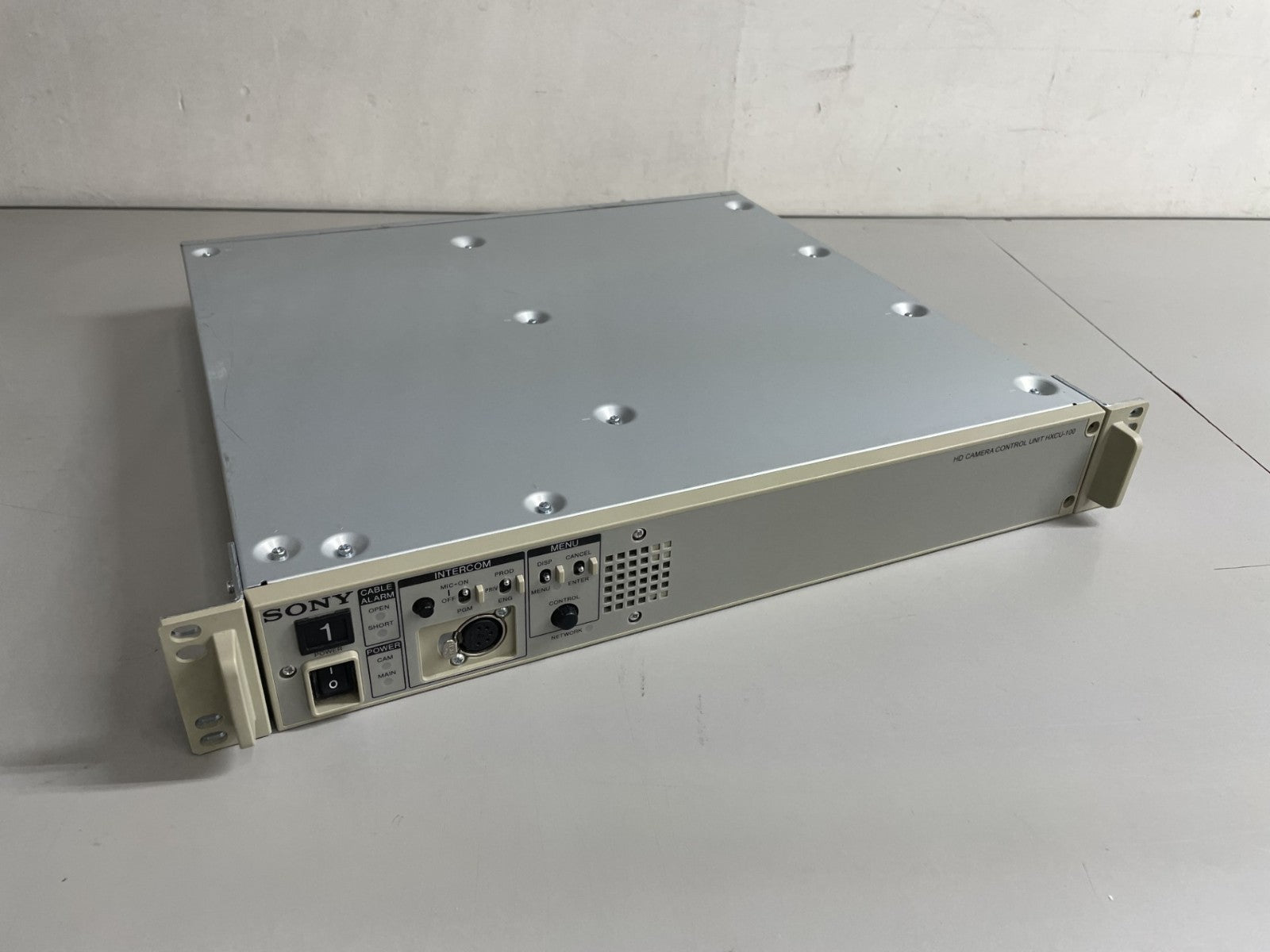

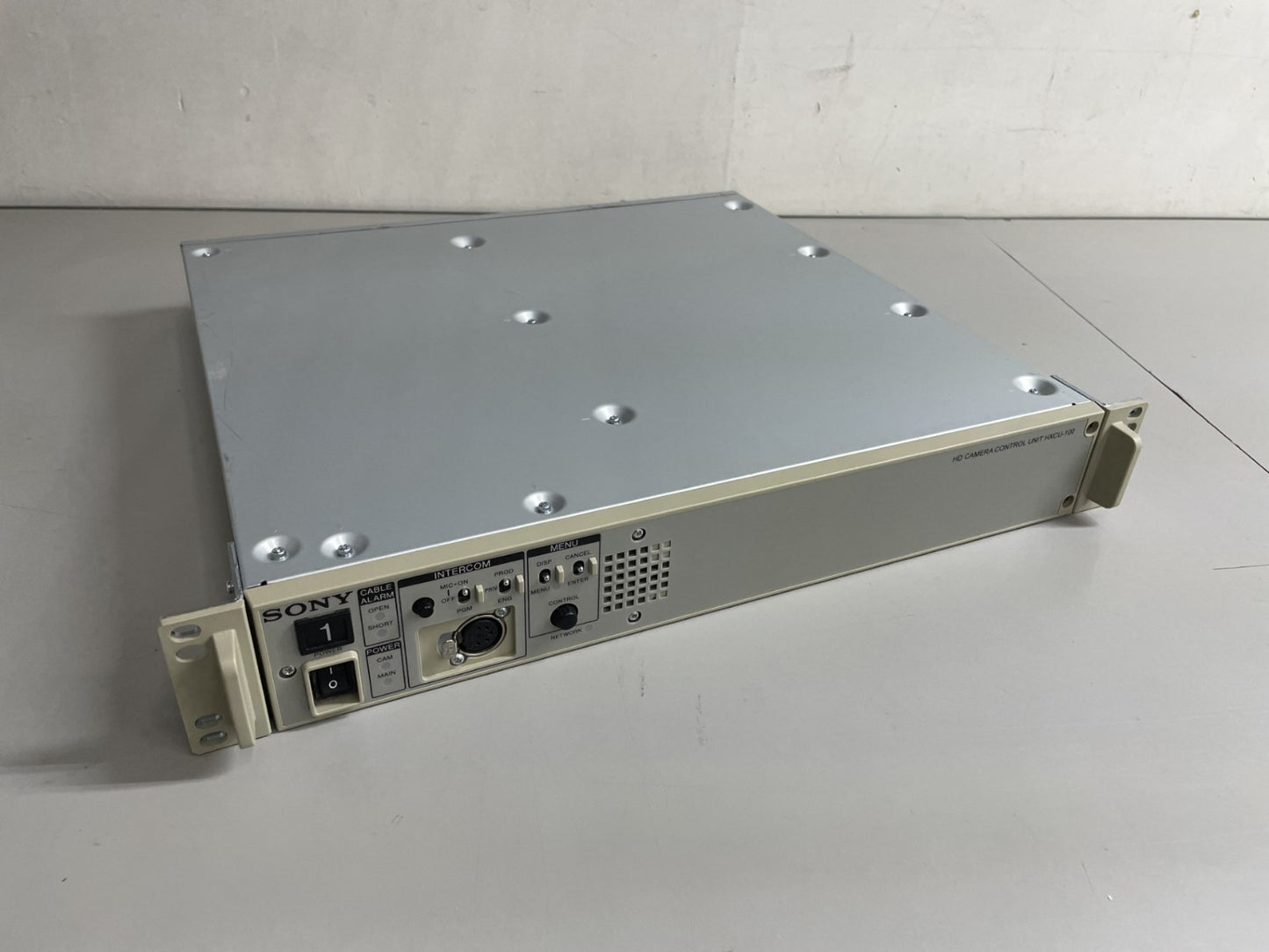

The Sony HXCU-100 is the Camera Control Unit (CCU) for the HXC-100 studio broadcast camera. Utilizing digital triax technology, this CCU supports high resolution image transfer between it and the camera regardless of the connecting cable length.
Using the latest in digital triax transmission technology, this unit supports cable runs up to 3937 (1200 m) when using 14.5mm diameter cable between the CCU and the camera. The actual maximum cable length depends on a number of factors including the camera lens type and the number of other cable connections in place.
Features
Digital Triax Transmission: Transmits high-resolution video, power, and intercom signals over long distances between the camera and the control unit.
Compact Design: Features a 1.5 RU size that saves space in mobile production trucks and tight studio control rooms.

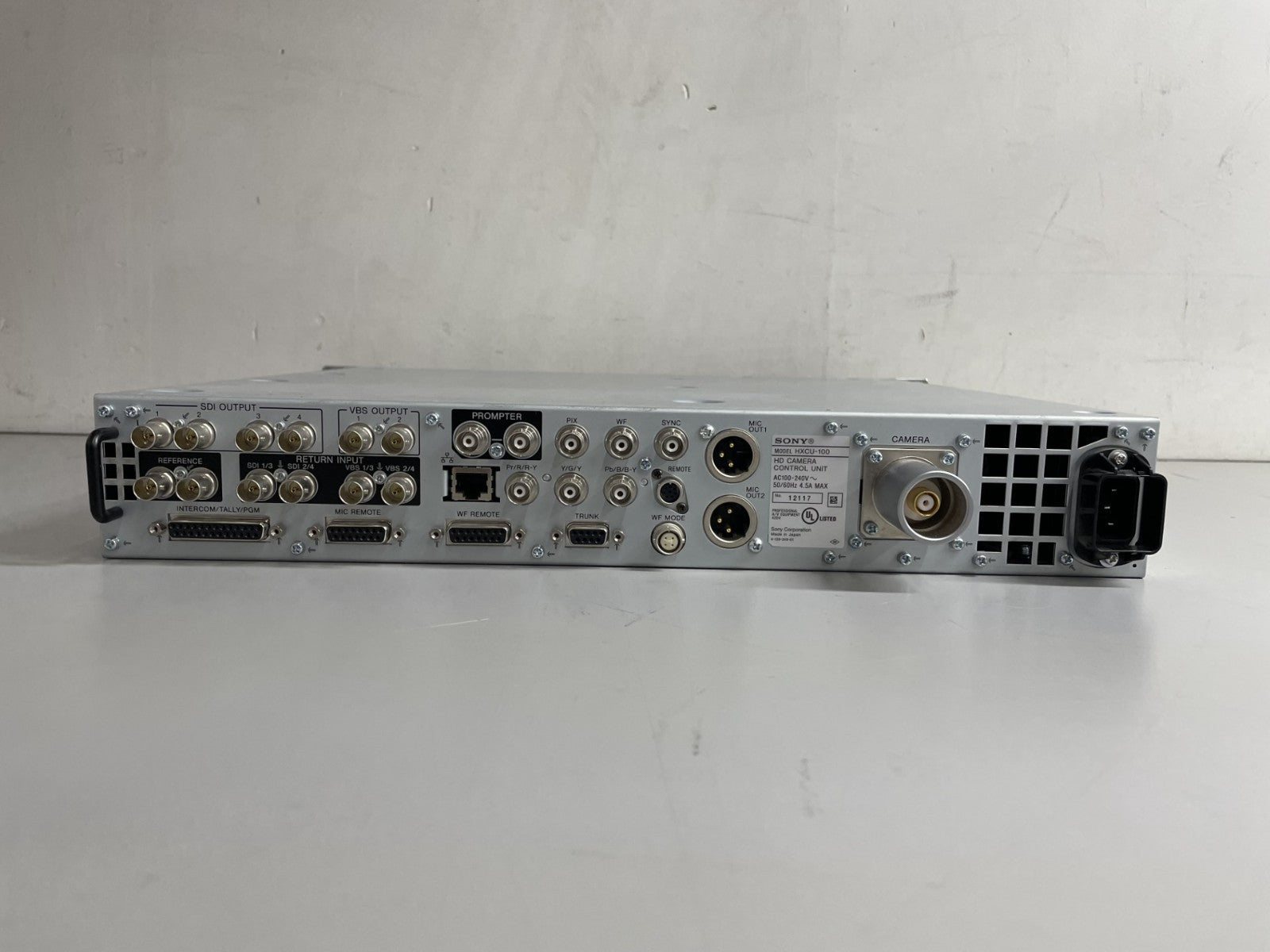

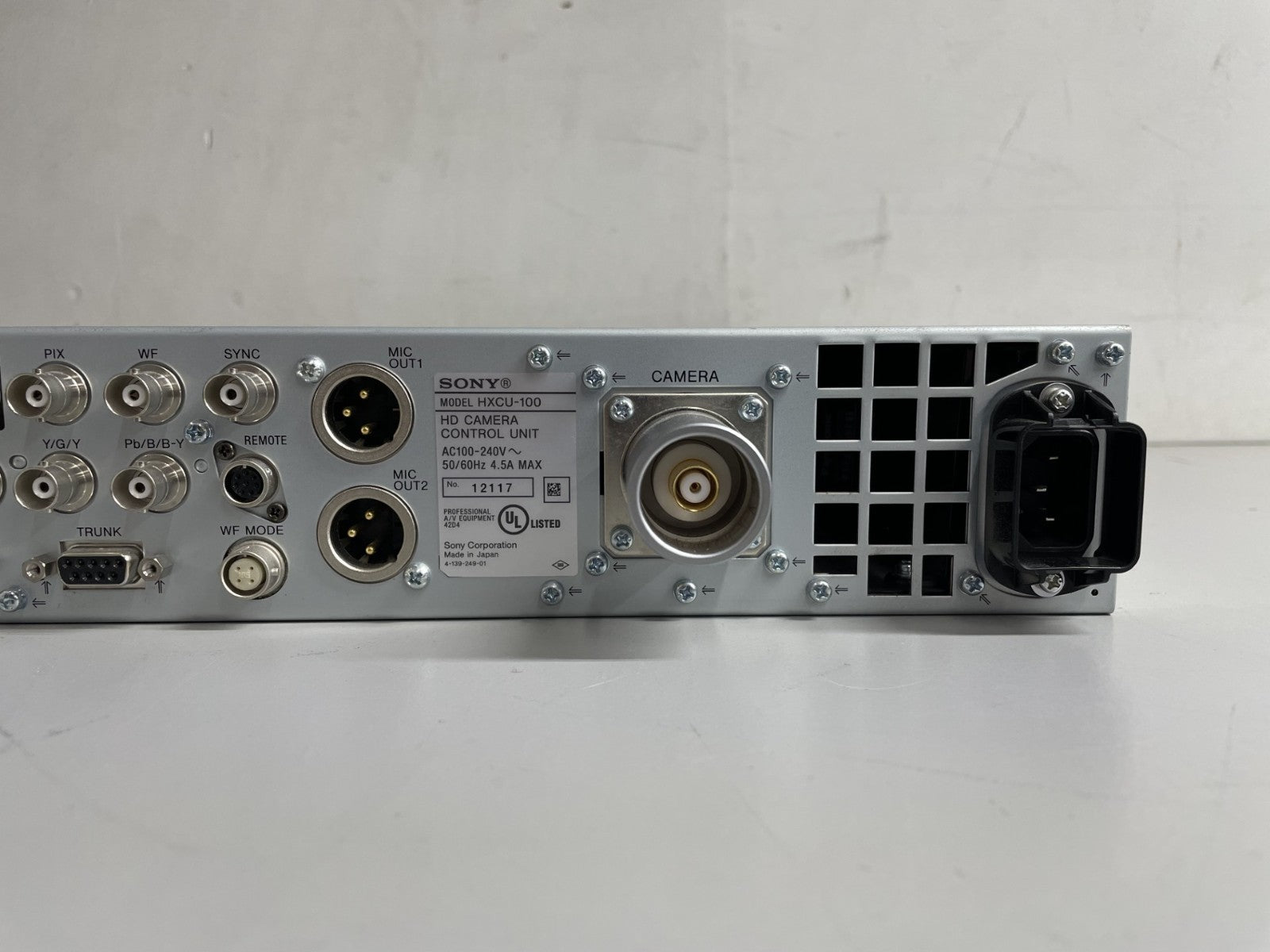

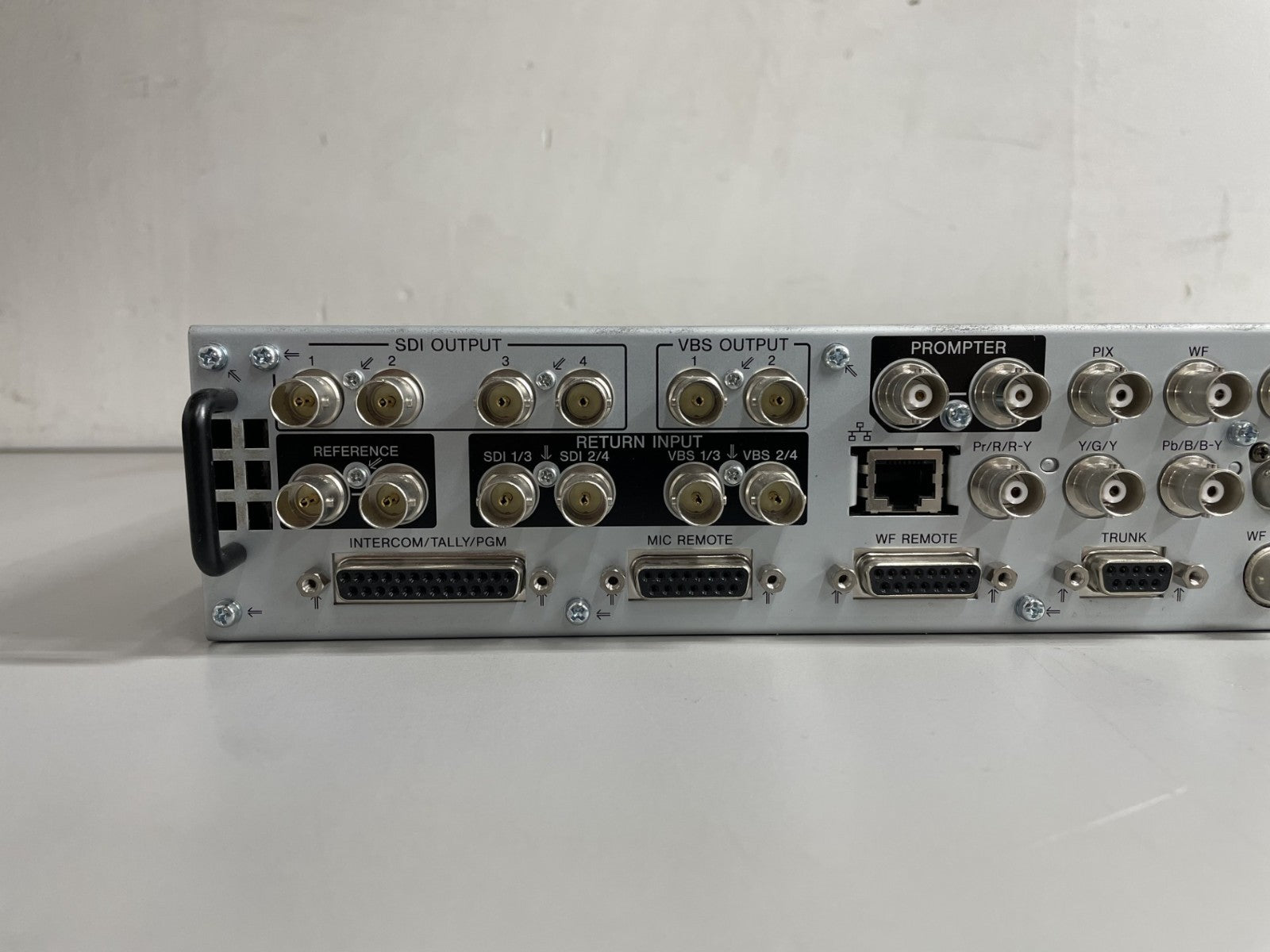

Flexible Interfaces: Provides selectable inputs and outputs for HD-SDI, SD-SDI, return signals, and prompter feeds.

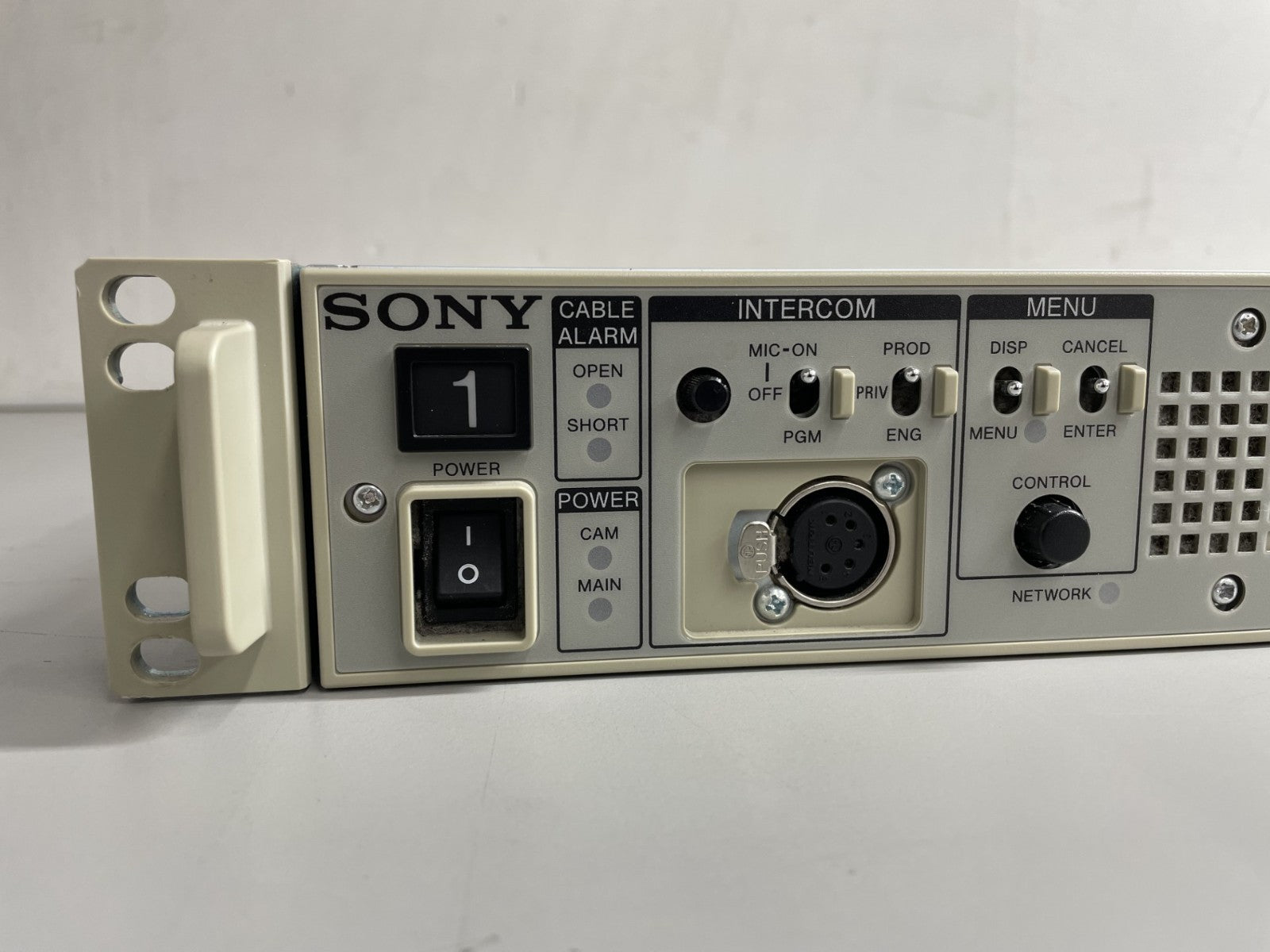

Optional Front Control Panel: Can be fitted with the optional HKCU-FP1 front panel for direct physical control of camera settings like white balance and shutter speed.
Remote Compatibility: Works with Sony RCP-100 series and legacy remote control panels.
Shipping
Standard shipping anywhere in the contiguous United States is $19.
