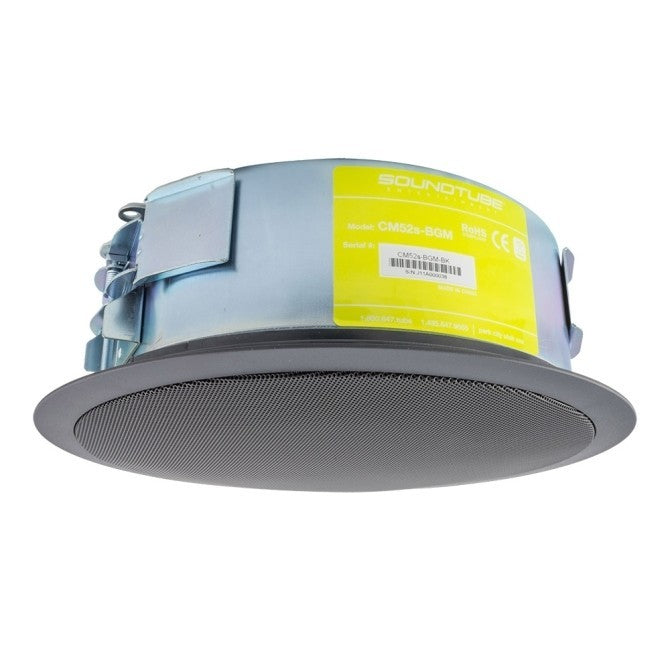

The CM52s-BGM is a 5.25” coaxial two-way blindmount, short can, in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating a 5.25”polypropylene driver with a rubber surround and a
0.75” silk dome tweeter in a drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (65 Hz - 22 kHz, ±10 dB) in an integrated enclosure design.

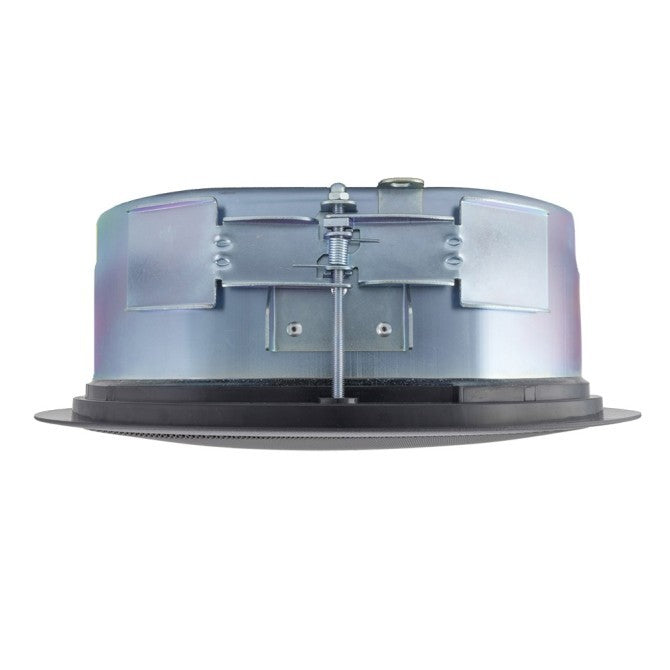

• Engineered for applications with limited plenum space incorporating a shallow backcan with an installed depth of only 3.5”

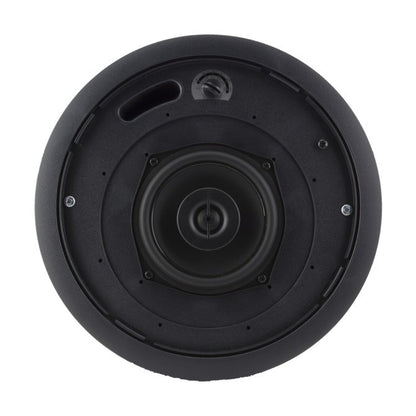

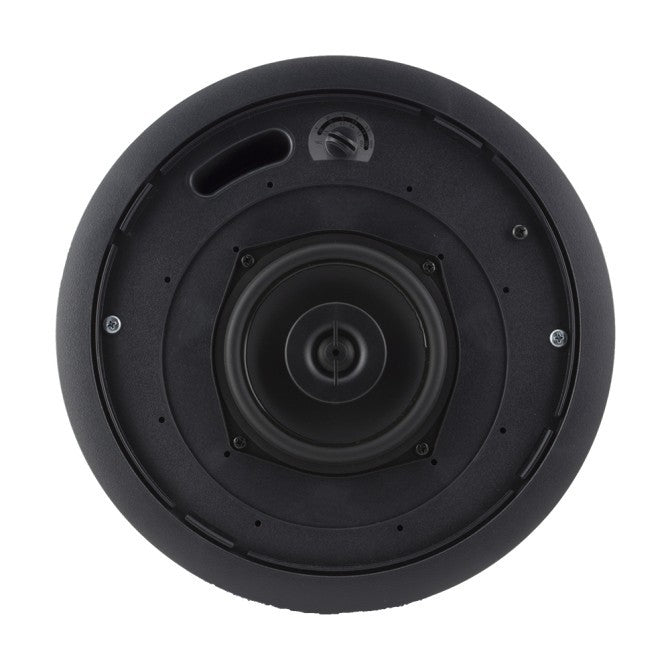

• One 5.25” (134 mm) polypropylene woofer with rubber surround and one 0.75” (19 mm) silk dome tweeter
• BroadBeam Ring technology for mid-range clarity and ultra wide off-axis performance

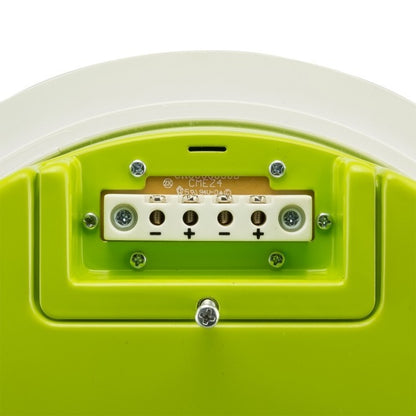

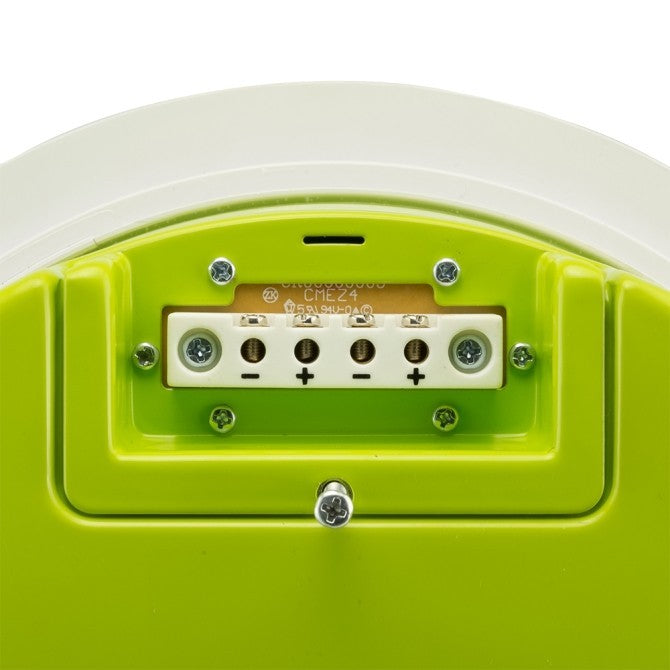

• Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings
• Tuned port on baffle for added musicality and bass response down to 65 Hz (±10 dB)
• Reduced amplification costs and maximum efficiency of 79.1 dB sensitivity, 16 Ω impedance

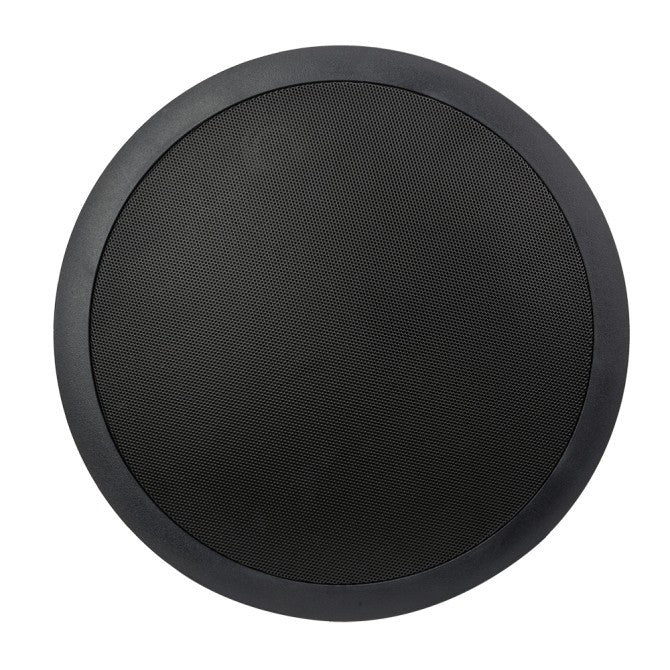

• Incorporates a painted steel grille for lasting durability
• Adaptable to material thicknesses ranging from 0.035” | 0.9 mm to 1.6” | 40.6 mm
• UL1480 and 2043 approved
• High-quality black painted finish
