Tannoy

TANNOY AMS 8DC 360watt 8" Dual Concentric Surface Mount Speakers (WHITE) (IP65)

TANNOY AMS 8DC 360watt 8" Dual Concentric Surface Mount Speakers (WHITE) (IP65)

Regular price $979.95
Regular price Sale price $979.95
Sale Sold out

Brand: Tannoy

Type: All-Weather Speakers

Color: White

Model: AMS 8DC

Connectivity: Wired

MPN: Does Not Apply


TANNOY AMS 8DC 360watt 8" Dual Concentric Surface Mount Speakers (WHITE)

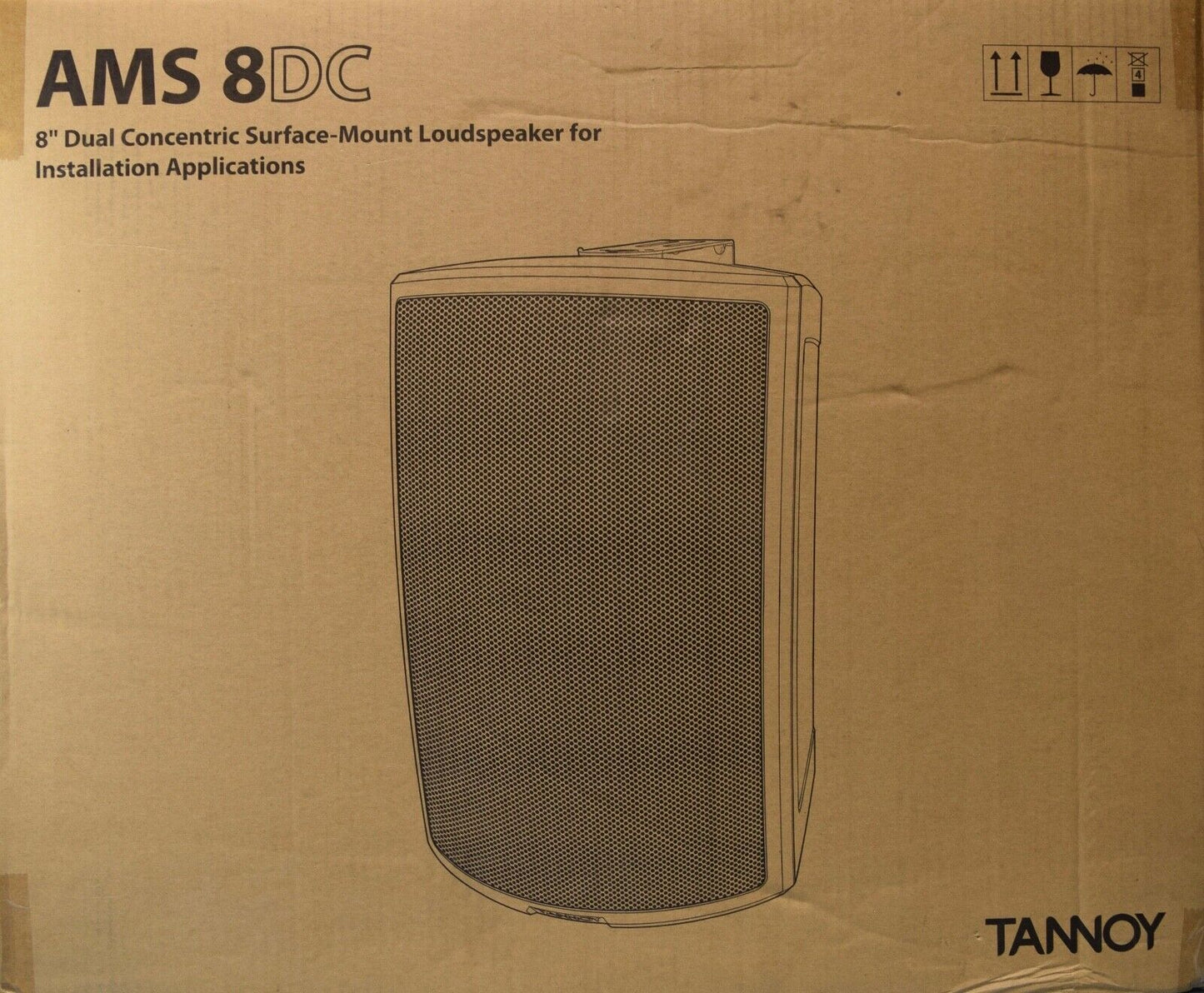

Brand new in original packaging.


More information from Tannoy:


  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 90 Watts continuous, 360 Watts peak power
  • 8" next generation Dual Concentric driver featuring Omnimagnet technology
  • Torus Ogive waveguide for improved high frequency response and directivity
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
  • All components weather resistant to IP65 for outdoor use
  • High temperature resistant ABS enclosure rated at 120°C
  • Semi matt black paint finish fits unobtrusively in any environment
  • Yoke bracket included for ease of installation
  • Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
  • Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch
  • Designed and engineered in the U.K.

AMS 8DC

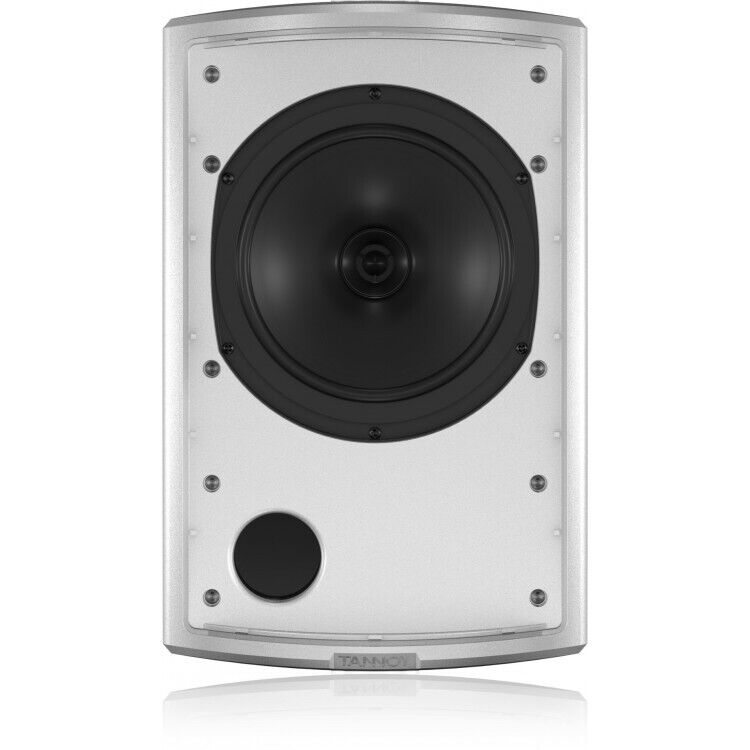

The AMS 8DC is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our all-new proprietary 8" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. The AMS 8DC is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 8DC loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers.

Weather-Resistant Enclosure

The elegantly styled white moulded enclosure blends beautifully into any décor. Additionally the AMS 8DC’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

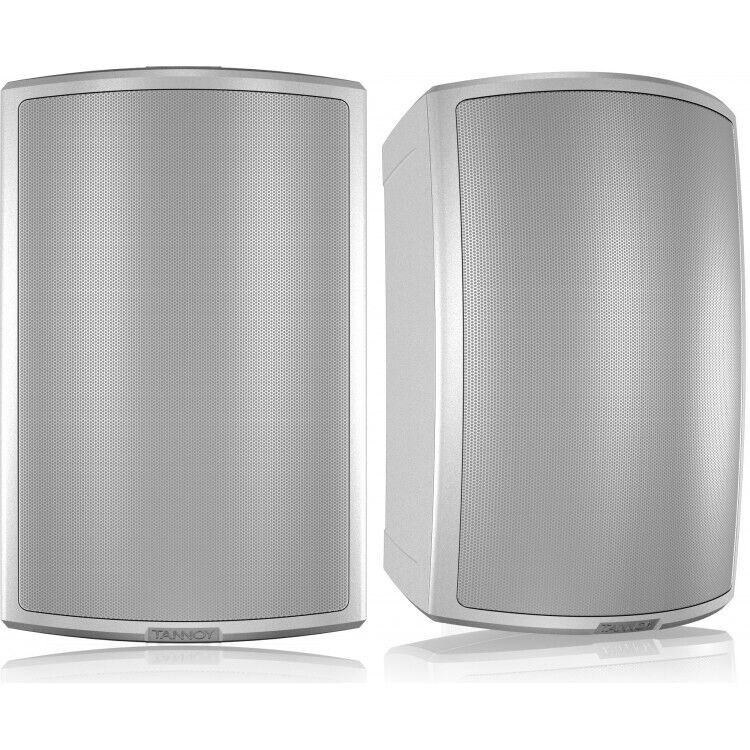

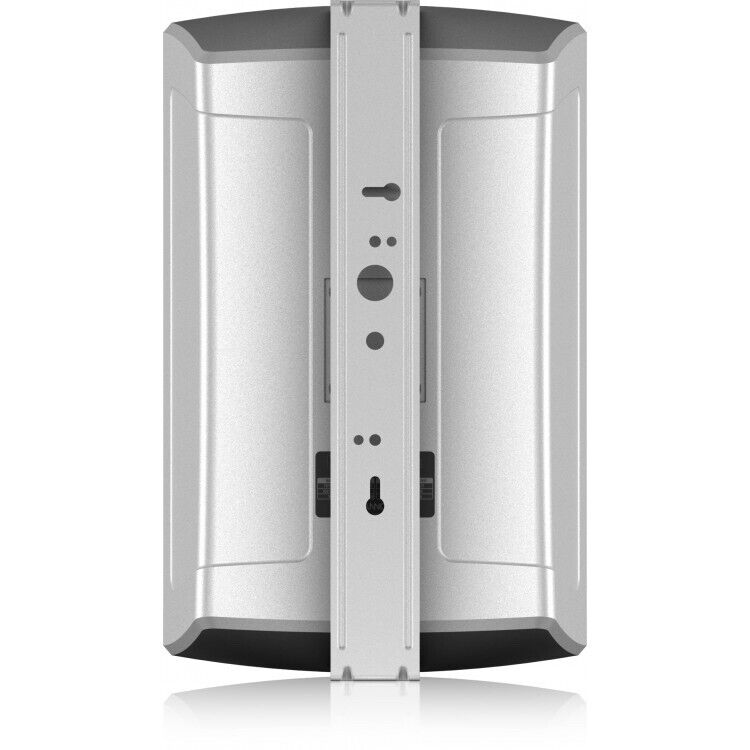

The highly durable and heat resistant ABS enclosure features a white finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included colour-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 60 W transformer with convenient tap switching.

LAB GRUPPEN Ready

AMS 8DC is optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 AMS Series loudspeakers
per channel.

Performance

Frequency Response (-3 dB) (1)

65 Hz - 30 kHz

Frequency Range (-10 dB) (1)

53 Hz - 40 kHz

System Sensitivity (1 W @ 1 m) (2)

92 dB (1 W = 4 V for 16 Ohms)

Nominal Coverage Angle

90 degrees conical

Power Handling

Average: 90 W
Programme: 180 W
Peak: 360 W

Recommended Amplifier Power

180 W @ 16 Ohms

Nominal Impedance (Lo, Z)

16 Ohms

Rated Maximum SPL

Average: 111 dB
Peak: 117 dB

Transformer Taps (via front rotary switch)

70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

TRANSDUCERS

Dual Concentric point source driver

1 x 200 mm (8.0") Dual Concentric driver, using Omnimagnet technology

Low Frequency

44 mm (1.75") voice coil, treated multi fiber paper pulp cone

High Frequency

25 mm (1.00") PEI dome

PHYSICAL

Enclosure

ABS

Grille

Weather-resistant zinc nickel-plated steel grille

Connectors

Removable locking connector with screw terminals

Transformer setting

Rotary switch

Dimensions (H x W x D)

409.8 x 260.0 x 306.3 mm (16.13 x 10.24 x 12.06")

Net Weight (ea)

7.82 kg (17.24 lbs)

Shipping Weight

8.69 kg (19.16 lbs)

Included Accessories

Yoke bracket
