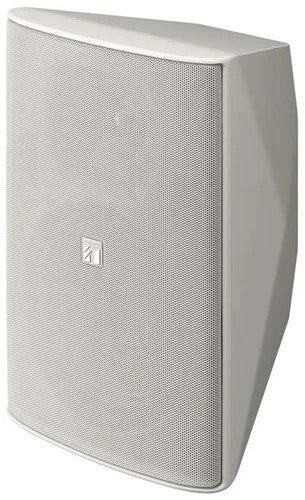

TOA F-2000WT Compact Box Speaker WHITE (Each) 8 Ohm 70V / 100V
TOA F-2000WT Compact Box Speaker WHITE (Each) 8 Ohm 70V / 100V
Regular price
$129.95
Regular price
Sale price
$129.95
Unit price
/
per
Couldn't load pickup availability
Brand: TOA
Type: Table Speaker
Color: White
Model: TOA F-2000WT
Connectivity: Wired
Features: Compact
Impedance: 8 Ohms
The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
Enclosure
Bass-reflex type
Rated Input
60 W (high impedance)
Power Handling
Continuos pink noise: 60 W (low impedance)
Continuos program: 180 W (low impedance)
Continuos program: 180 W (low impedance)
Rated Impedance
8 Ω
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
Sensitivity
92 dB (1 W, 1 m) at installation in 1/2 free sound field
93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter)
93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter)
Frequency Response
65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency
2.5 kHz
Directivity Angle
Horizontal: 110°, Vertical: 100°
Horizontal: 80°, Vertical: 80° (with horn adapter)
Horizontal: 80°, Vertical: 80° (with horn adapter)
Speaker Component
Low frequency: 20 cm (8) cone-type
High frequency: 25 mm (1) dome tweeter
High frequency: 25 mm (1) dome tweeter
Input Terminal
Push-in terminal
